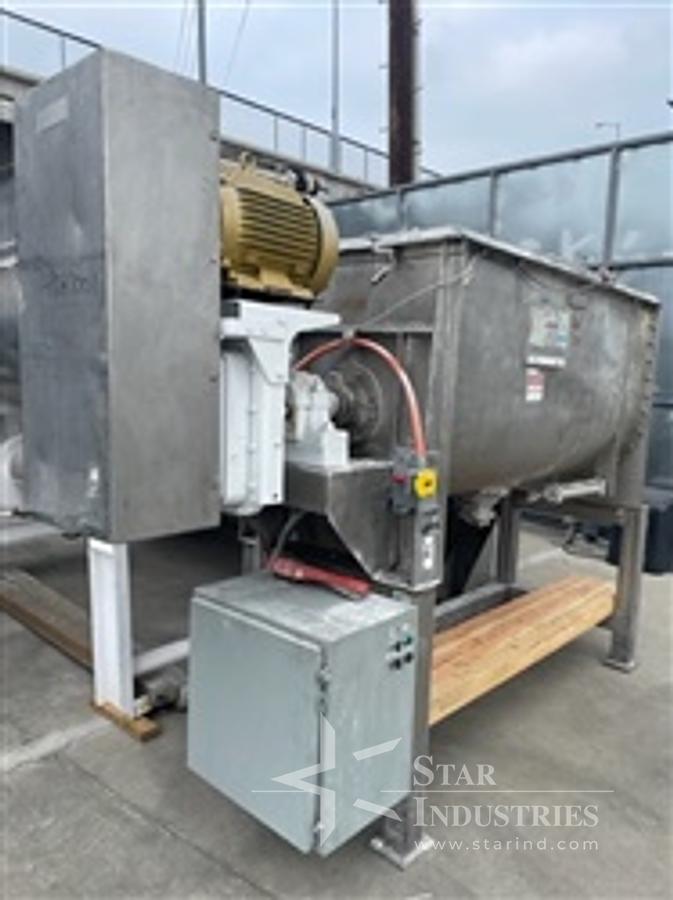

40 cu. ft. J.H. Day S.S. Ribbon Blender w/ Spray System

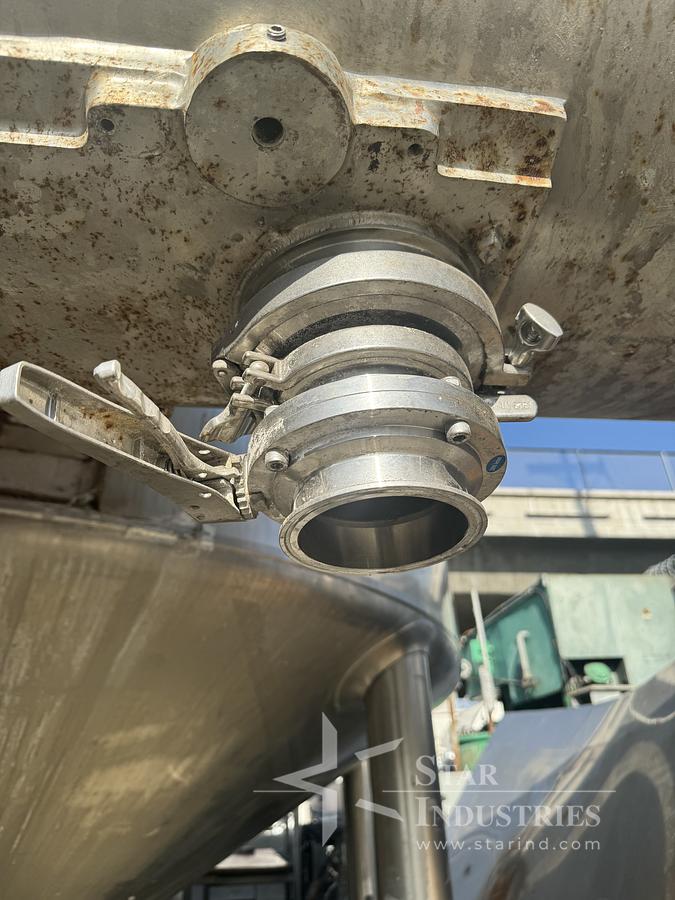

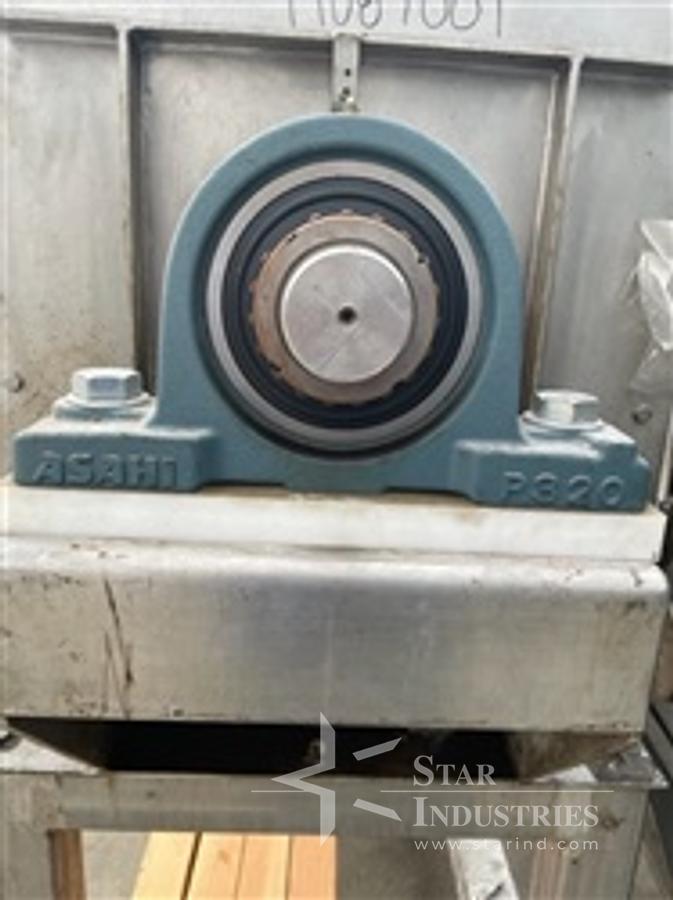

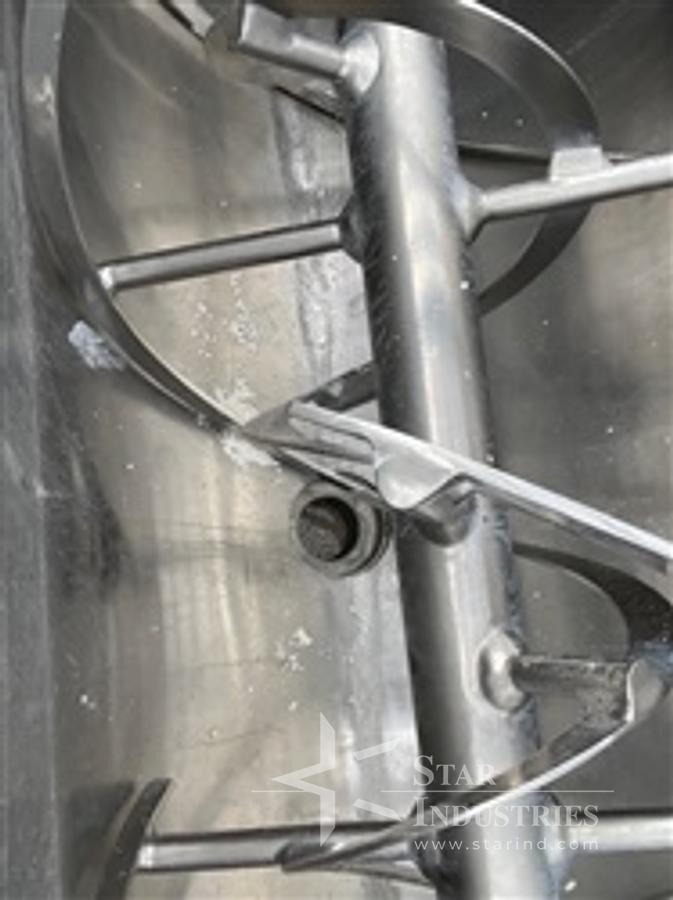

Used J. H. Day 40 Cubic Foot Double Spiral Ribbon Blender, 304 stainless construction. Trough measures 30" wide x 78" long x approximately 32" deep, 4" diameter end bottom outlet. Ribbon assembly includes 3-1/2" diameter center shaft, 2" wide x 1/8" thick inner ribbon, 1-1/2" wide x 3/8" thick outer ribbon, welded to 1" diameter posts. Includes outboard roller bearings, packing glands and top hinged cover. Driven by 20 HP 230/460 V, 1770 RPM, 3/60 Hz motor with gear reducer ratio: 6.50 to 1,280 output RPM to chain & sprocket assembly.
