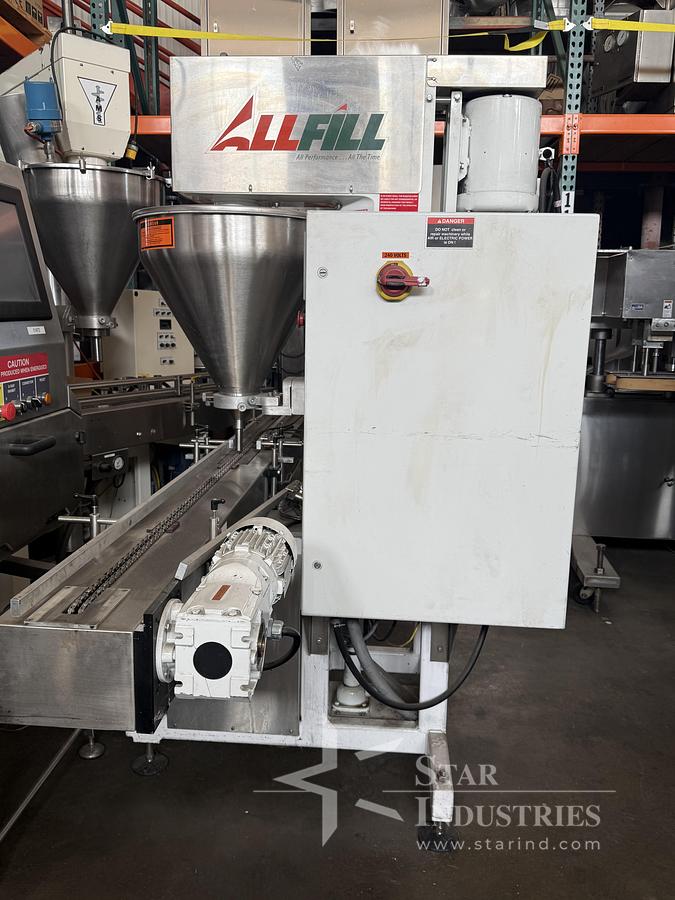

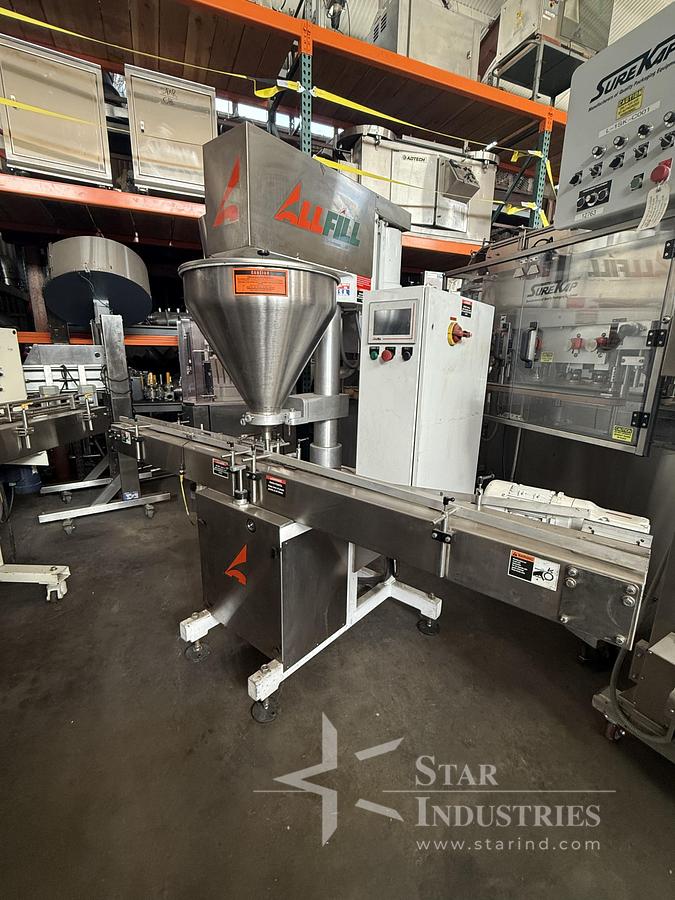

All Fill SHA-600 Single head Powder Filler

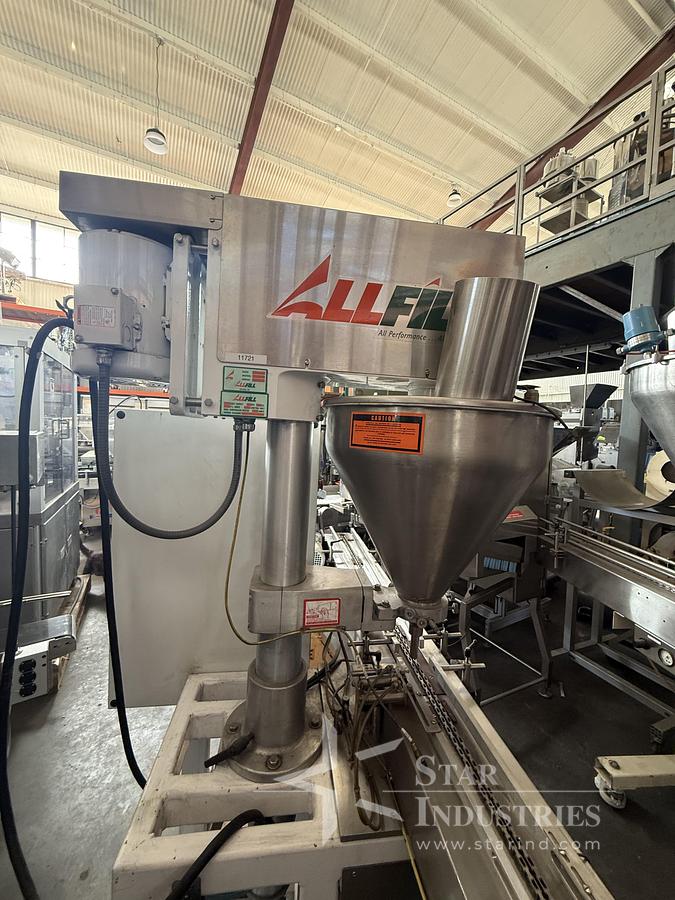

ONE (1) – ALL-FILL MODEL SHA-600 SINGLE HEAD AUTOMATIC FILLING MACHINE, TO INCLUDE: FILLING HEAD:

•
   Heavy duty painted aluminum casting with one piece type 304 stainless steel removable access cover.
•
   22" dia. type 304 stainless steel, 2 cu.ft. capacity hopper.
•
   22" dia. type 304 stainless steel dust proof hopper cover with 6” dia. infeed duct.
•
   One (1) piece hopper clamp assembly for easy removal.
•
   Aluminum self-aligning "quick disconnect" hopper coupling.
•
   Funnel missing detector switch.
•

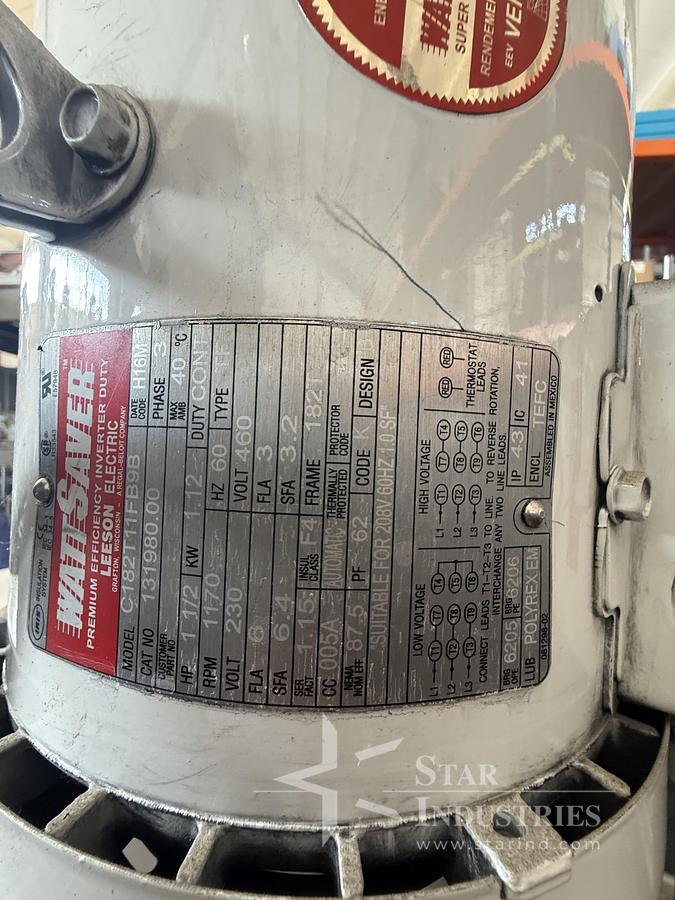

   1-1/2 H.P., TEFC auger drive motor.
•
   Heavy duty modular Warner EM-180 electro-magnetic clutch brake.
•
   200 pulse/revolution optical shaft encoder.
•
   Totally enclosed belt drive with 3 speed pulley adjustment.
•

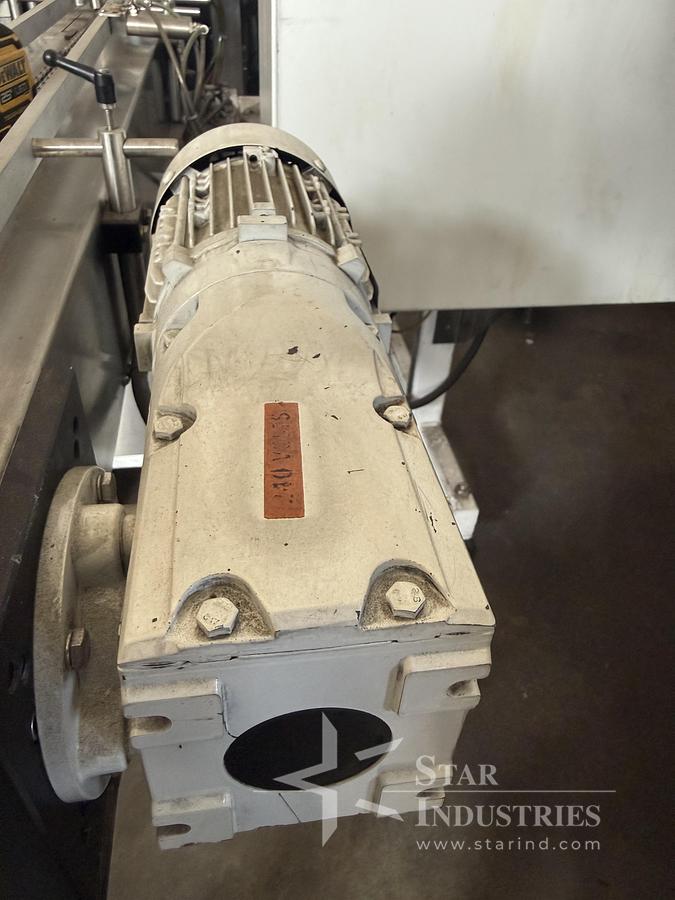

   Slow speed agitation complete with 1/2 H.P. gear-head motor.
•
   Aluminum mounting column.
• CONVEYOR AND FRAME:
•

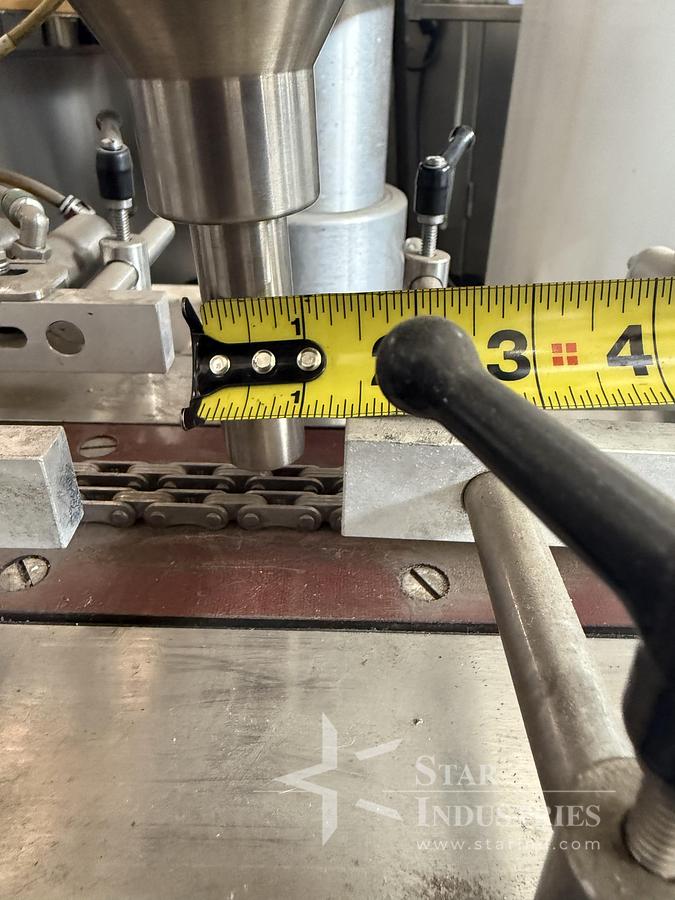

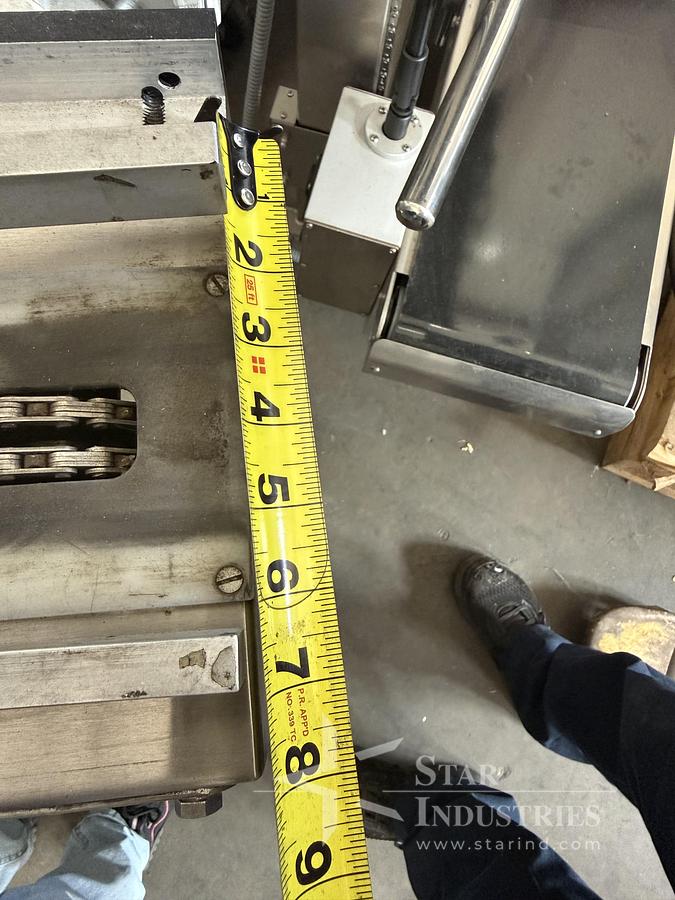

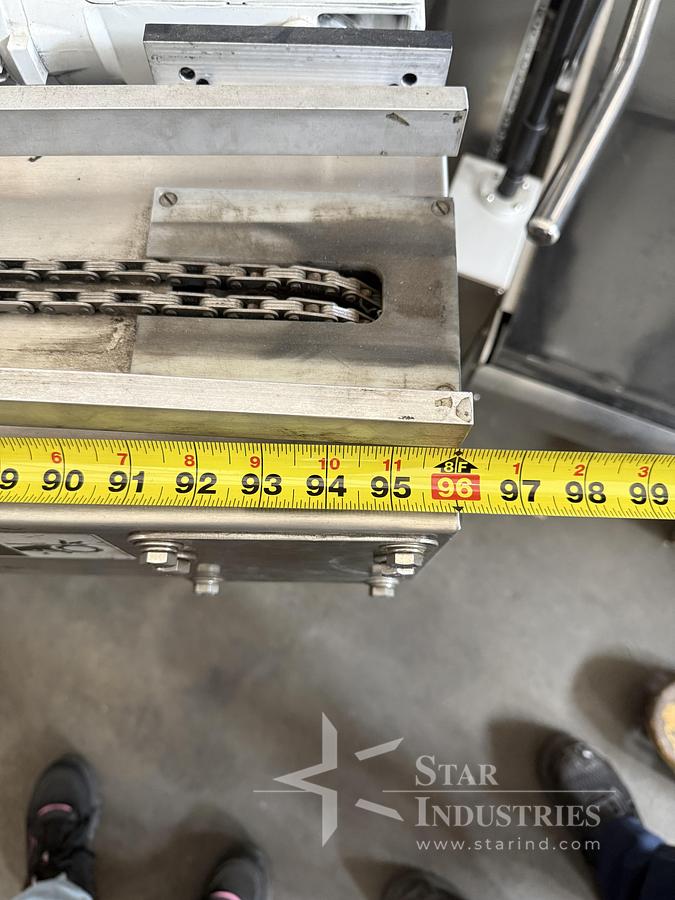

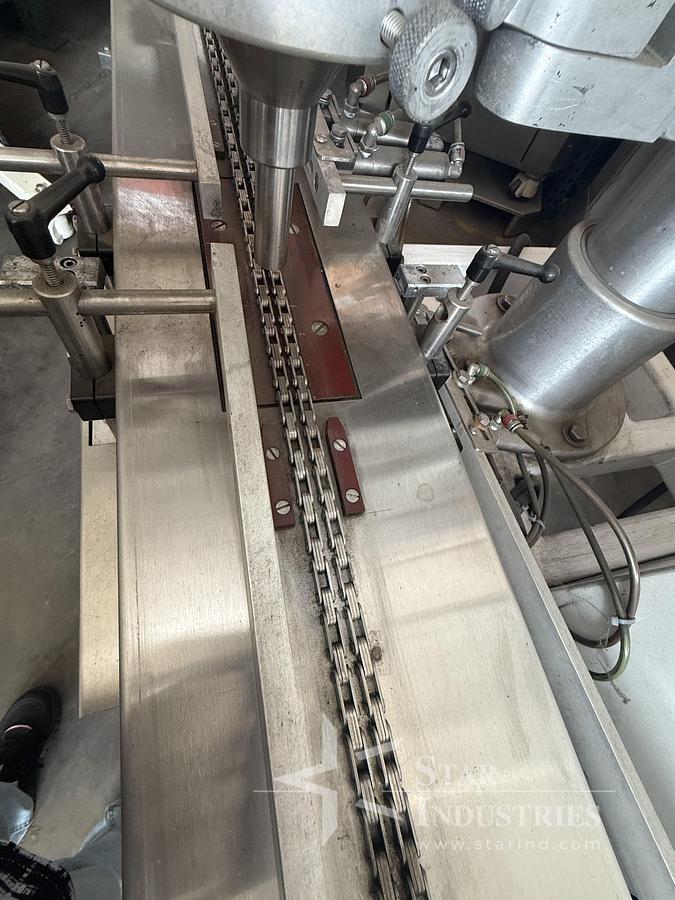

   8’ type 304 stainless steel conveyor channel with adjustable guide rails to handle various size rigid containers up to 6” diameter.
•
   Painted Steel Support Frame with Jack Assembly.
•

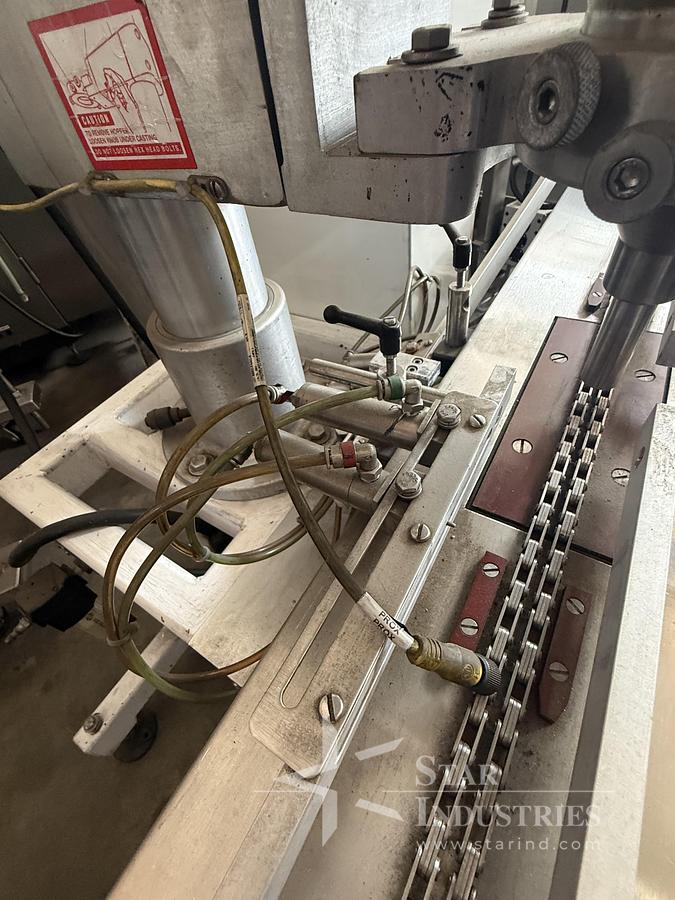

   Fully adjustable pneumatic container indexing stops, for convenient changeover between
• container sizes.
• Electrical Requirements, 230V, 3phase, 60Hz or 480V, 3phase, 60Hz
