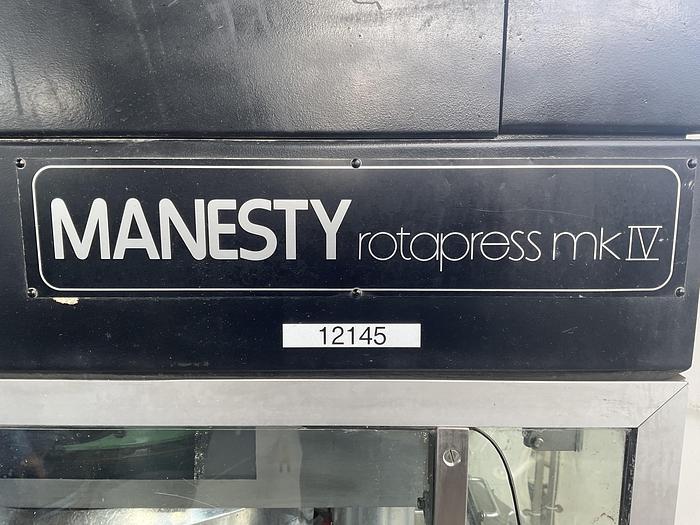

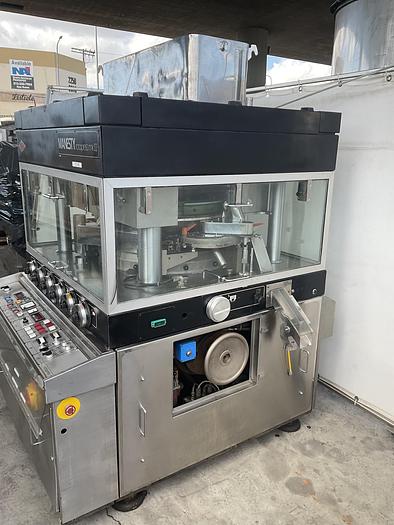

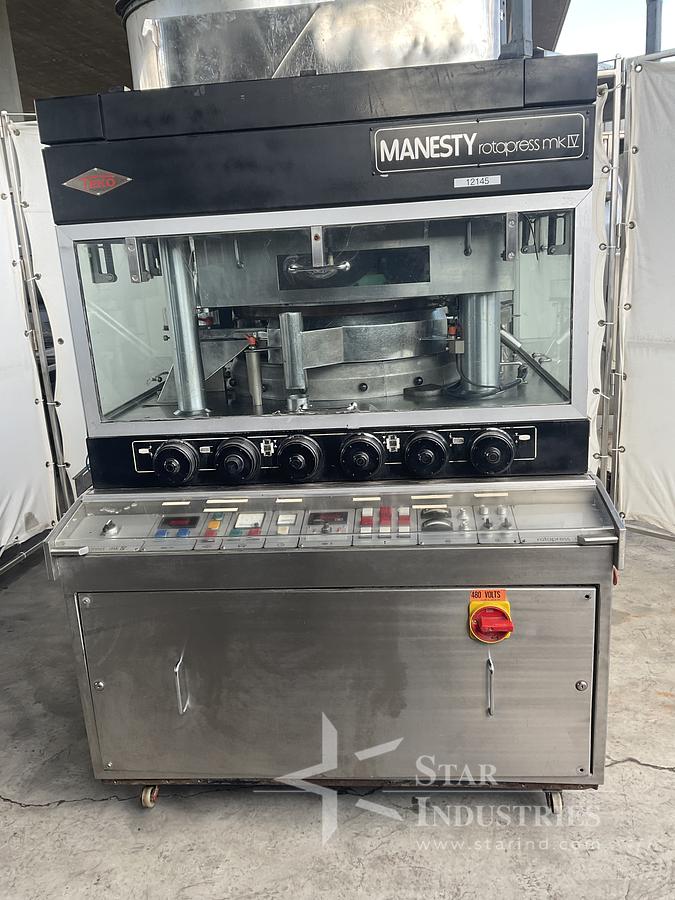

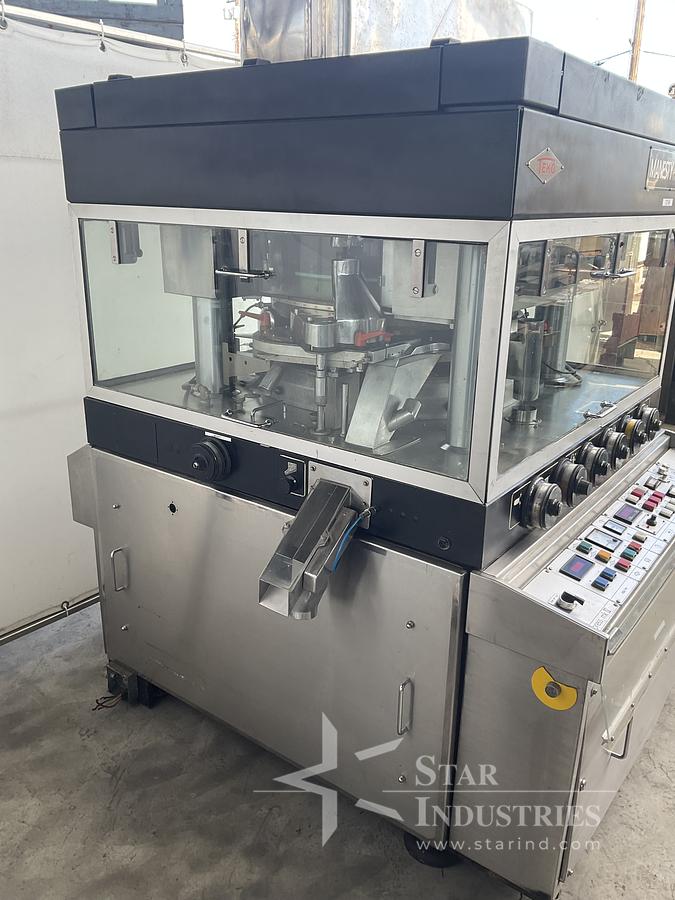

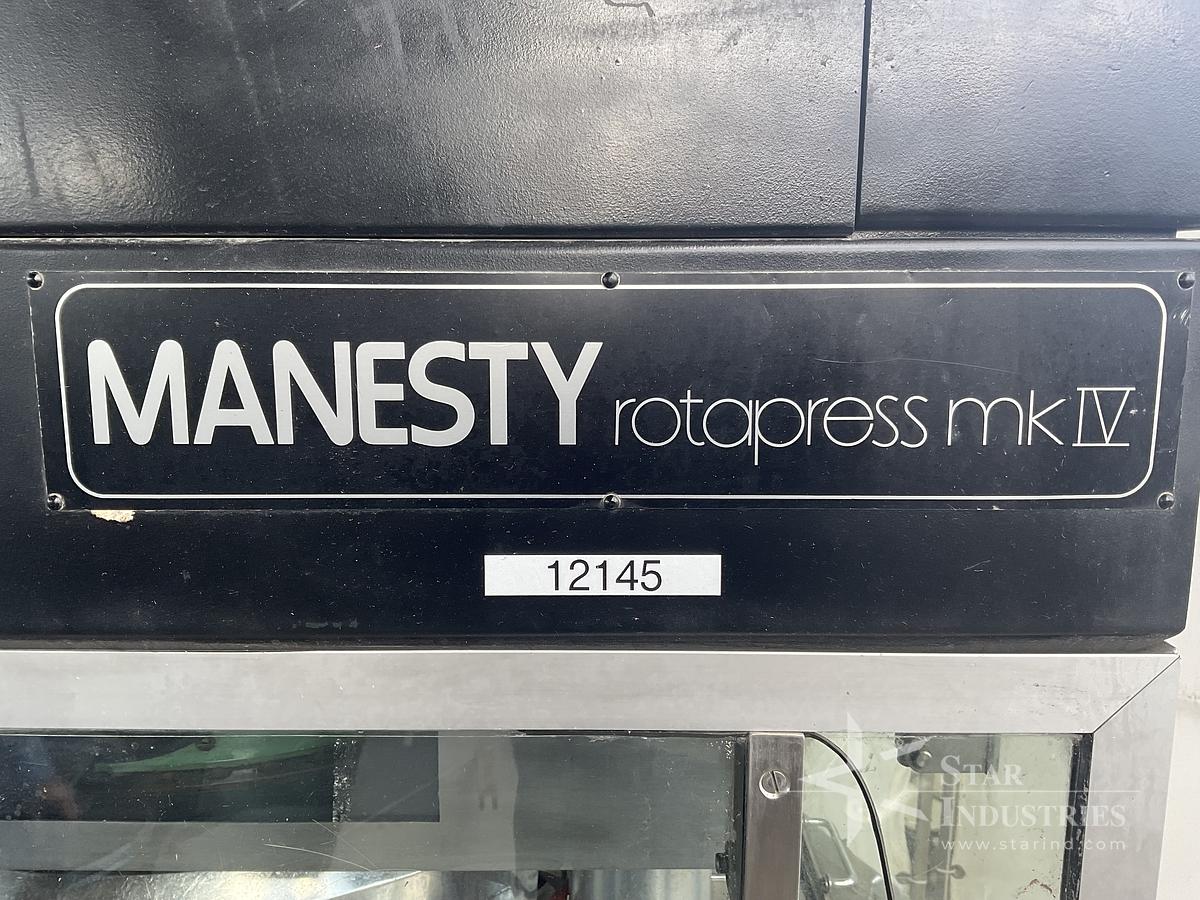

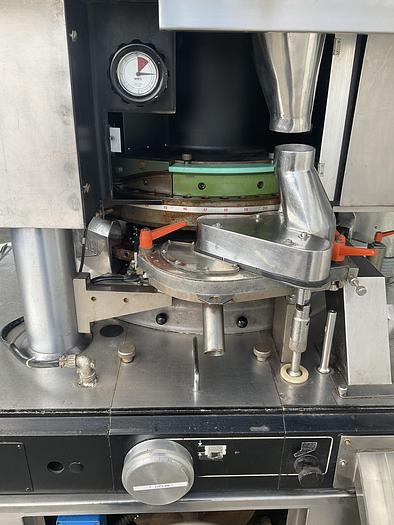

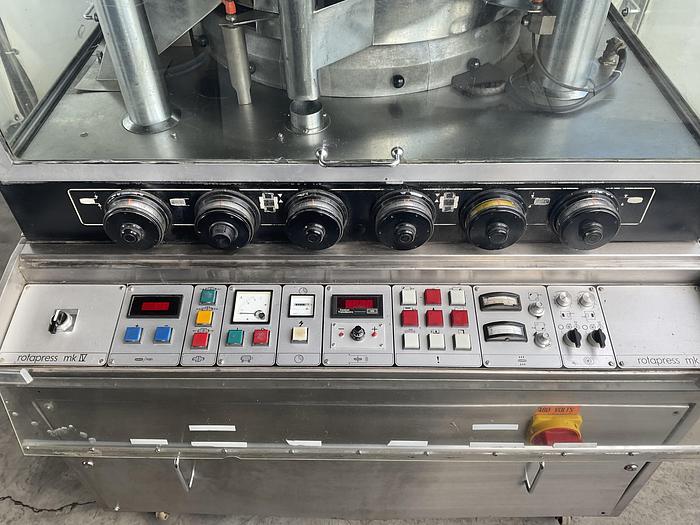

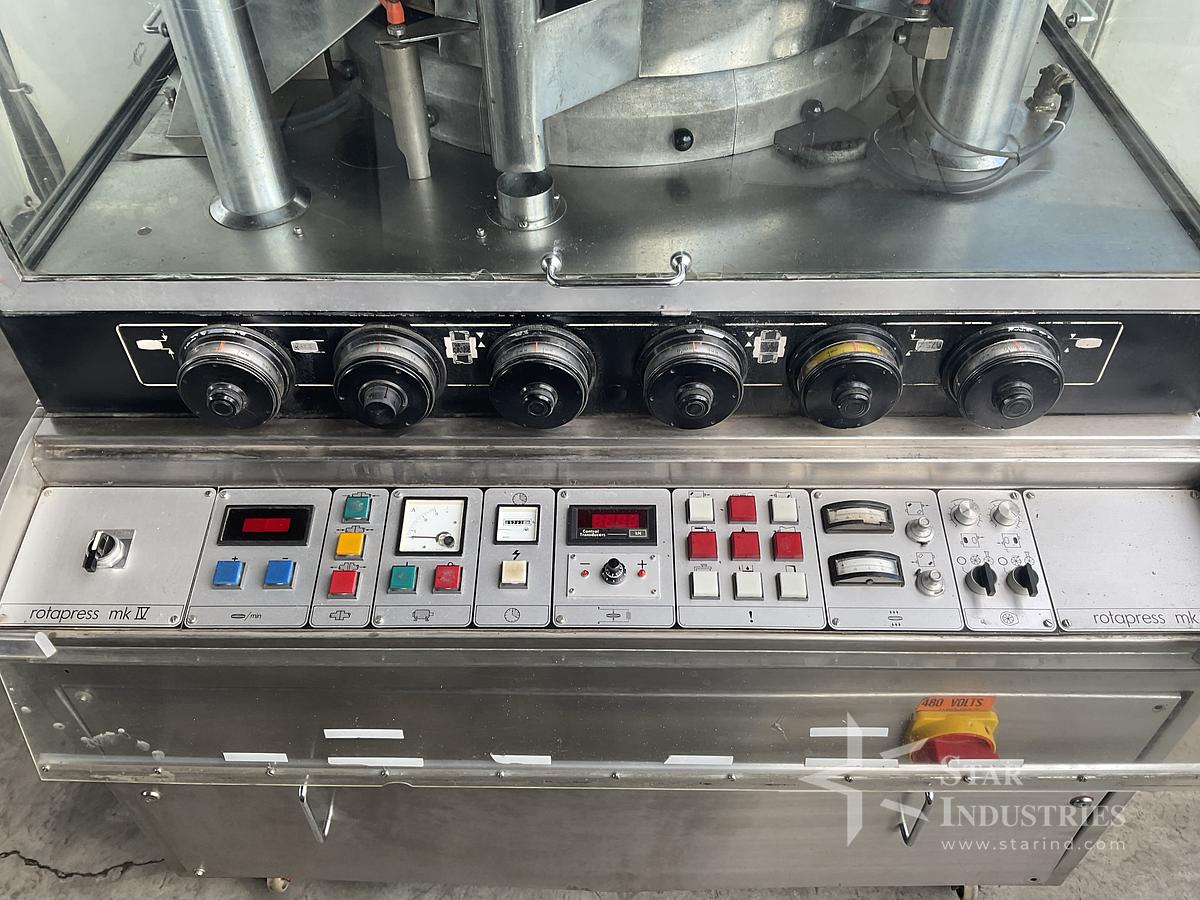

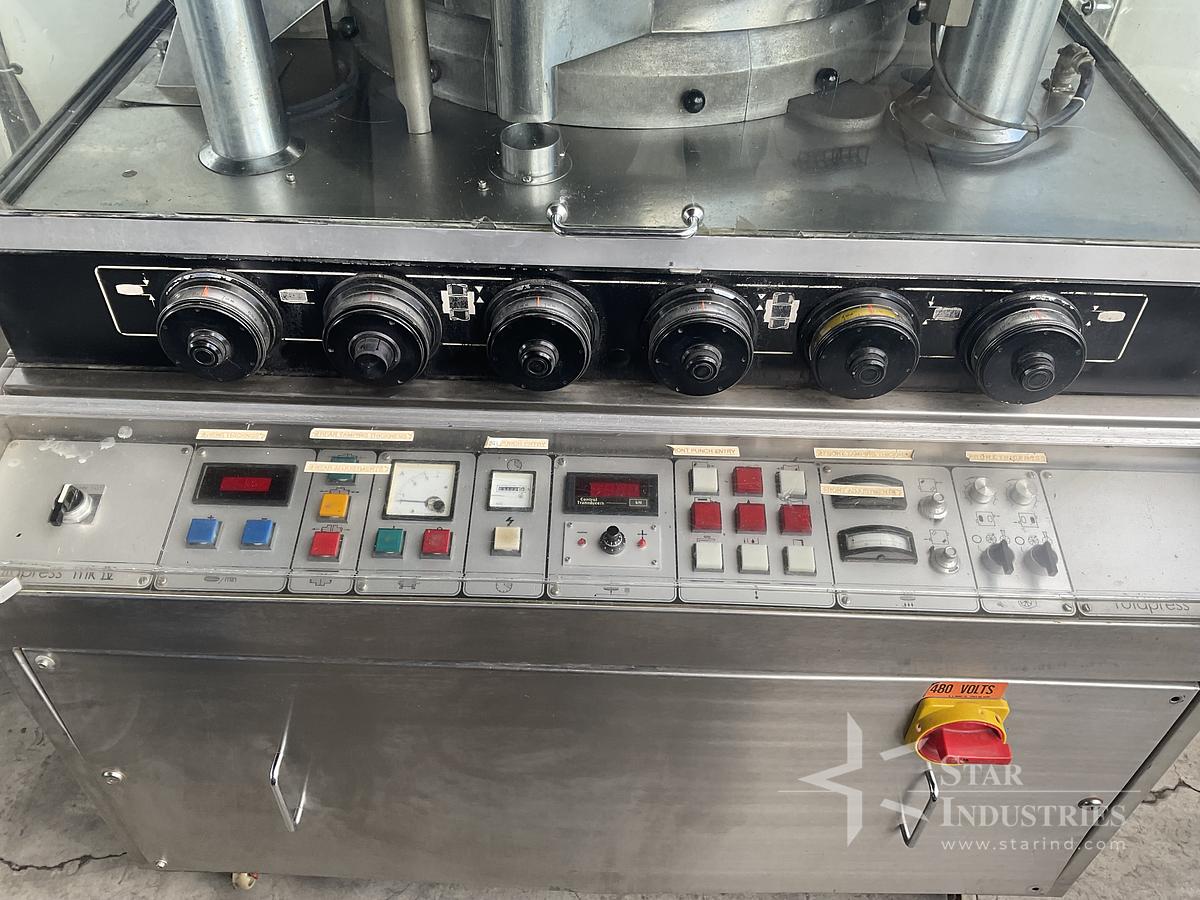

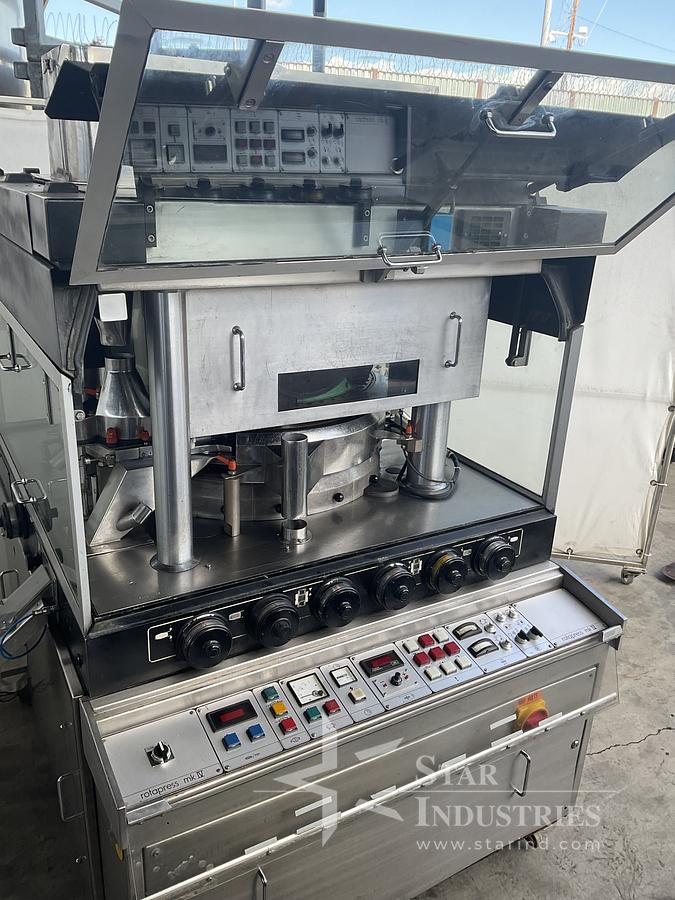

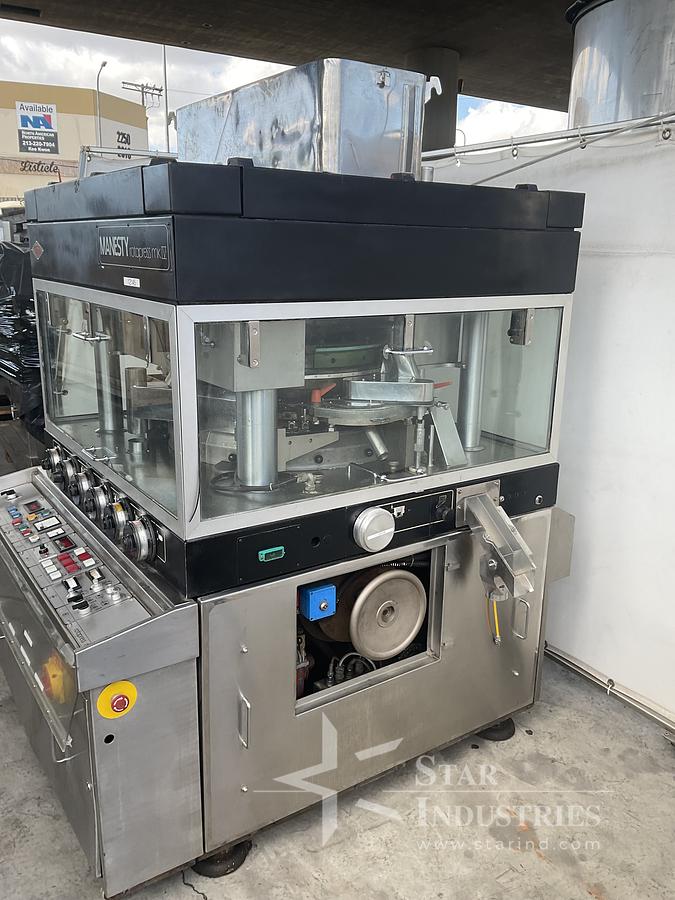

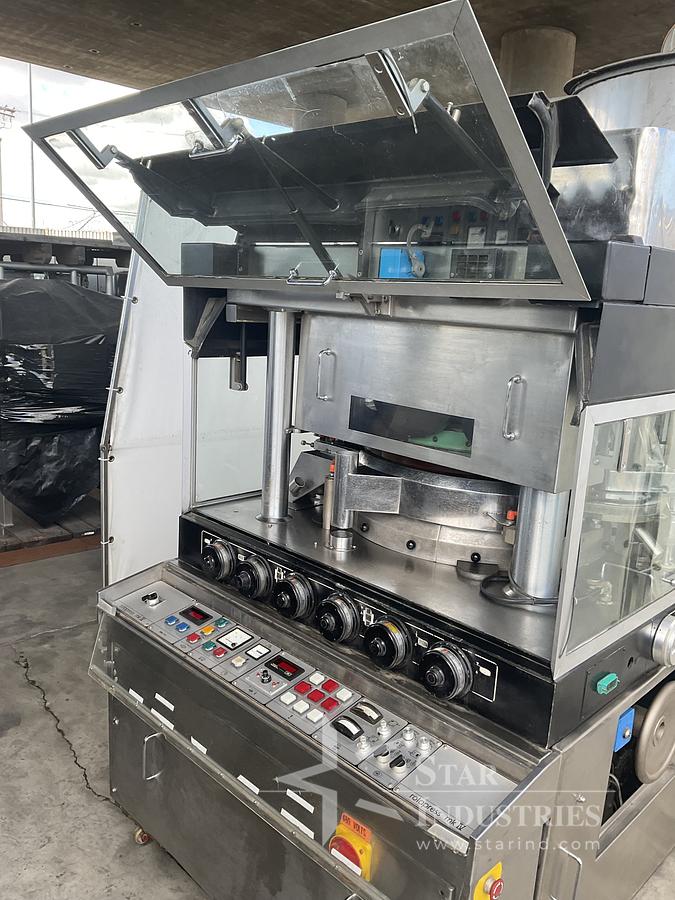

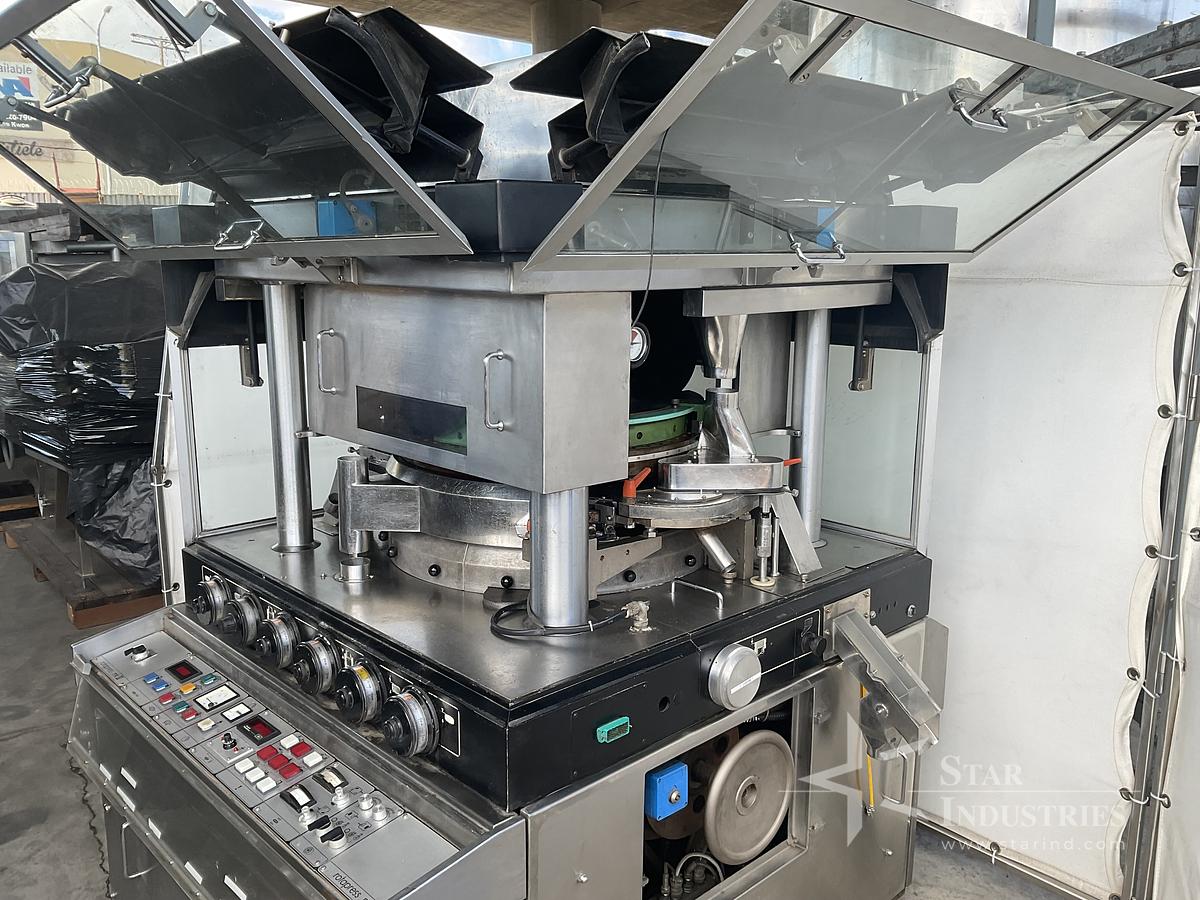

Manesty Rotapress MK IV 55 station Tablet Press, B-tooled

ELECTRICAL WIRING

ELECTRIC POWER IS 3 (THREE) PHASE (3 WIRE + 1 EARTH ), V, 60HZ, AND CONTROL ELECTRIC POWER IS CONTROL SOURCE, AND POWER SUPPLY IS CONNECT A SOCKET CONNECTOR or PLUG TO THE WIRE FROM THE CONNECTION NIPPLE LOCATED ON THE RIGHT SIDE OF THE MACHINE, AND TURN ON THE CAM SWITCH ON THE LEFT SIDE OF THE SWITCH CABINET OF POWER SUPPLY.

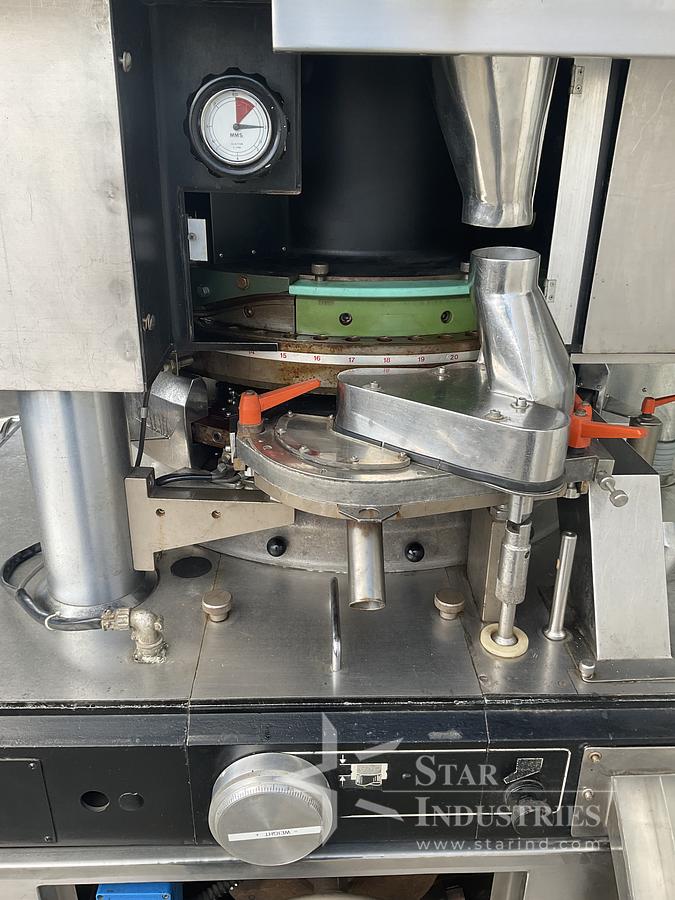

FILLING CAMS

FILING CAMS IS A FIVES) KINDS OF 0.5- 6 mm, 4.5 - 10mm,

8.5 - 14mm, 12.5 - 18mm, 16.5 - 22mm

FOR FILLING DEPTH, AND MUST TO CHANGE OF USE BY PRODUCTS.

WHEN YOU CHANGE OF FILLING CAM;

RAISE THE LOWER PUNCH BY TURNING ADJUSTING CHANGE RAIL SET BOLT LACATED UNDER THE EJECTOR CHANGE RAIL GUIDE BRACKET SO THAT ITS TIP PRODRUDES 0.1- 0.2mm ABOVE THE DISK.

COMPRESSEr TABLETS ARE EJECTED OUT OF A DIE BY THE EJECTOR PAIL ON THE LOWER TRACK RAIL.

THE IDEA SETTING OF THE EJECTOR RAIL IS TO ALLOW THE

1 DWEP PUNCH TIP TO PROTRUDE 0.1- 02mm ABOVE THE DISK.

SETING THE LOWER PUNCH TIP BELOW THE DISK SURFACE RESUL-S IN BREAKING TABLETS BY HITTING THE SCRAPER OF FEEDER.

IF THE LOWER PUNCH PROTRUDES TOO HIGH ABOVE THE DISK IT'LL HIT THE SCRAPER AND MAY BE DAMAGED.

DISK, IT'LL HIT THE SCRAPER AND MAY BE DAMAGED.

TABLET THICKNESS PRE- PRESSURE STATION &

TABLET THICKNESS MAIN- PRESSURE STATION

ADJUSTMENT OF MAIN PRESSURE CAN BE MADE BY USING THE INDEX HANDLE TO LOWER or RAISE THE LOWER PRESSURE ROLL.

TABLET THICKNESS IS DETERMINED IN ACCORDANCE WITH THE POSITION OF LOWER PUNCHES AT THE TIME OF MAIN COMPRESSION TURNING THE HANDLE CLOCKWISE PRODUCES HARD AND THIN TAB-LETS. TURNING THE HANDLE CLOCKWISE PRODUCES HARD AND THIN TABLETS.

TURNING IT COUNTER- CLOCKWISE PRODUCES SOFT AND THICK TABLETS.

ONE COMPLETE ROTATION OF THE HANDLE RAISES AND LOWER THE MAIN PRESSURE LOWER ROLL BY 0.2mm.

PRESSURE CUSHION

GAS SHOCK ABSORBERS ARE BUILT- IN ON BOTH OF MAIN AND PRE- PRESSURE STATION AND ABSORBS THE EXCESSIVE PRESSURE EXERTED TO PUNCHES.

ONE OF THE GAS SHOCK ABSORBERS WITHSTANDS MAX.

10 TONS OF MAIN PRESSURE.
