Retsch PM100

1- Retsch PM100

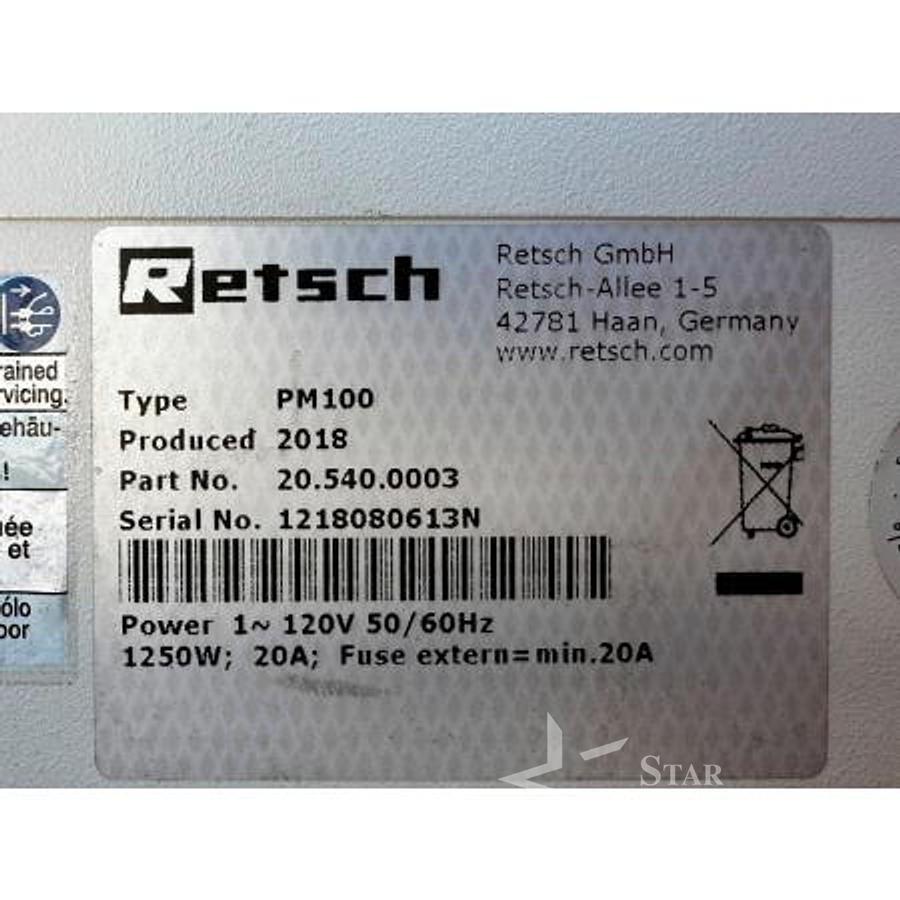

Model Number: PM100

Manufacture Date: 2018

Part Number: 20.540.0003.

Serial Number: 1218080613N

Volts: 120

Amps: 20

Watts: 1250

Hertz: 60

Description: The Planetary Ball Mill PM 100 is a powerful benchtop model with a single grinding station and an easy-to-use counterweight which compensates masses up to 8 kg. It allows for grinding up to 220 ml sample material per batch. The extremely high centrifugal forces of Planetary Ball Mills result in very high pulverization energy and therefore short grinding times. The PM 100 can be found in virtually all industries where the quality control process places the highest demands on purity, speed, fineness and reproducibility. The mill is ideally suited for tasks in research like mechanochemistry (mechano-synthesis, mechanical alloying and mechanocatalysis), or ultrafine colloidal grinding on a nanometer scale, as well as for routine tasks such as mixing and homogenizing soft, hard, brittle or fibrous materials Max. speed 650 rpm Up to 10 mm feed size and 0.1 µm final fineness 1 grinding station for jars from 12 ml up to 500 ml Jars of 12 – 80 ml can be stacked (two jars each) GrindControl to measure temperature and pressure inside the jar. Aeriation lids to control the atmosphere inside the jar Storable SOPs and cycle programs, 5 different jar materials for dry and wet grinding
