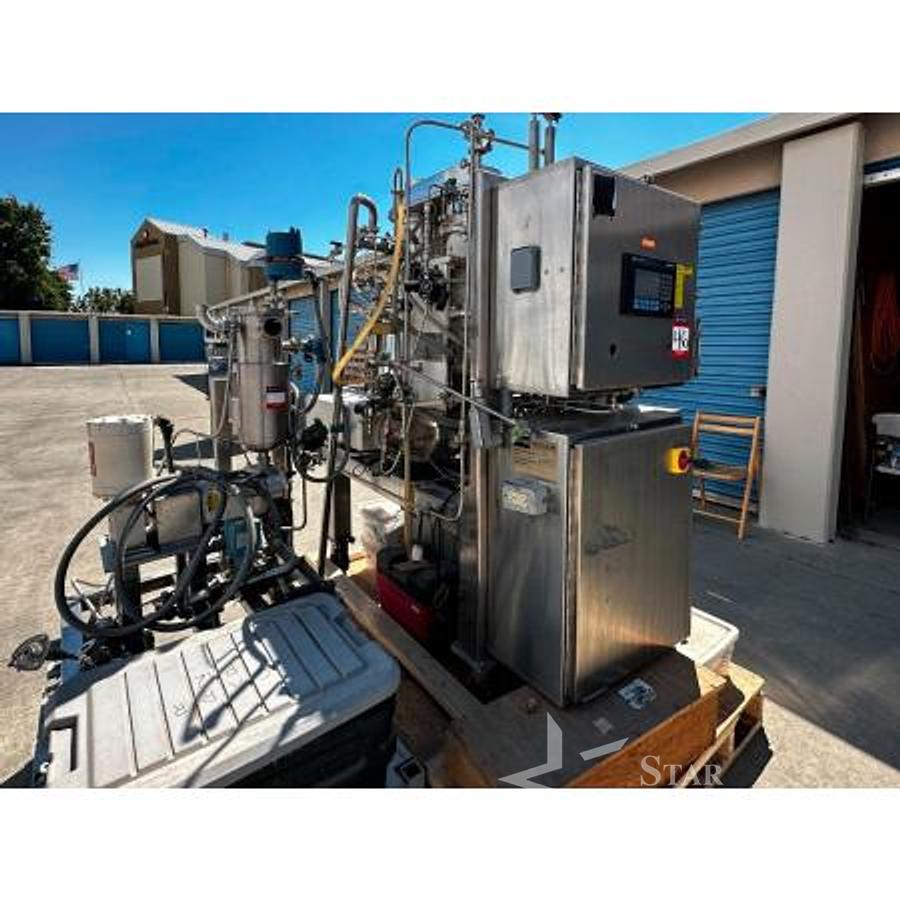

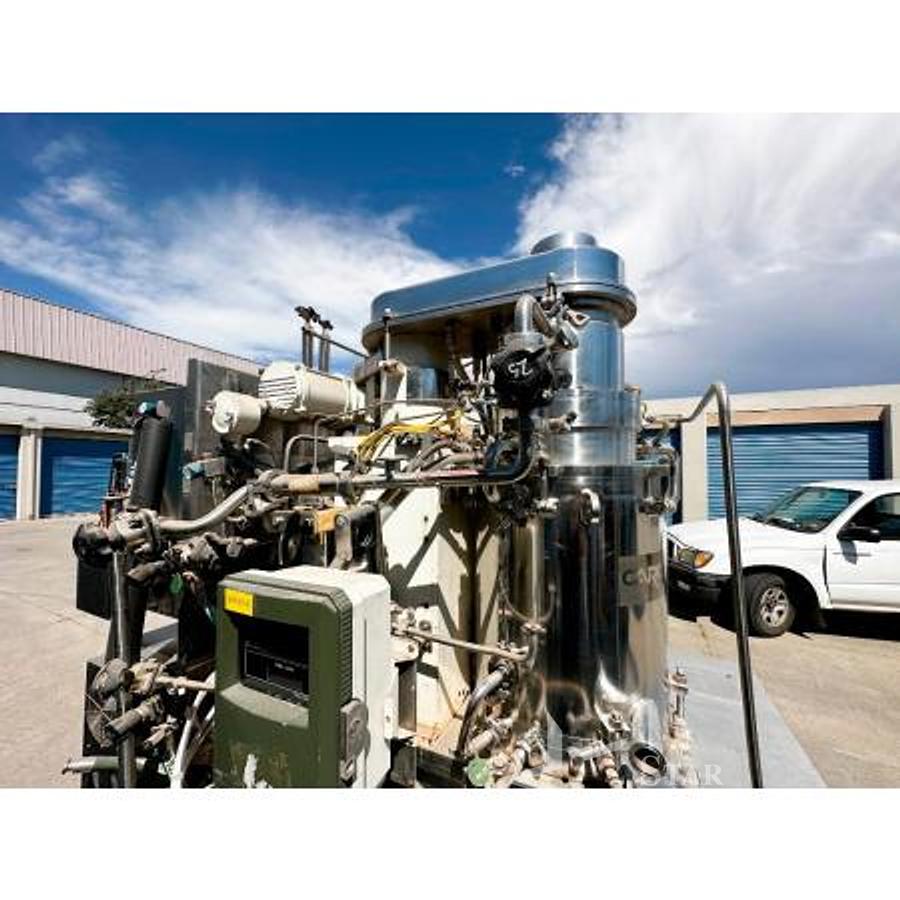

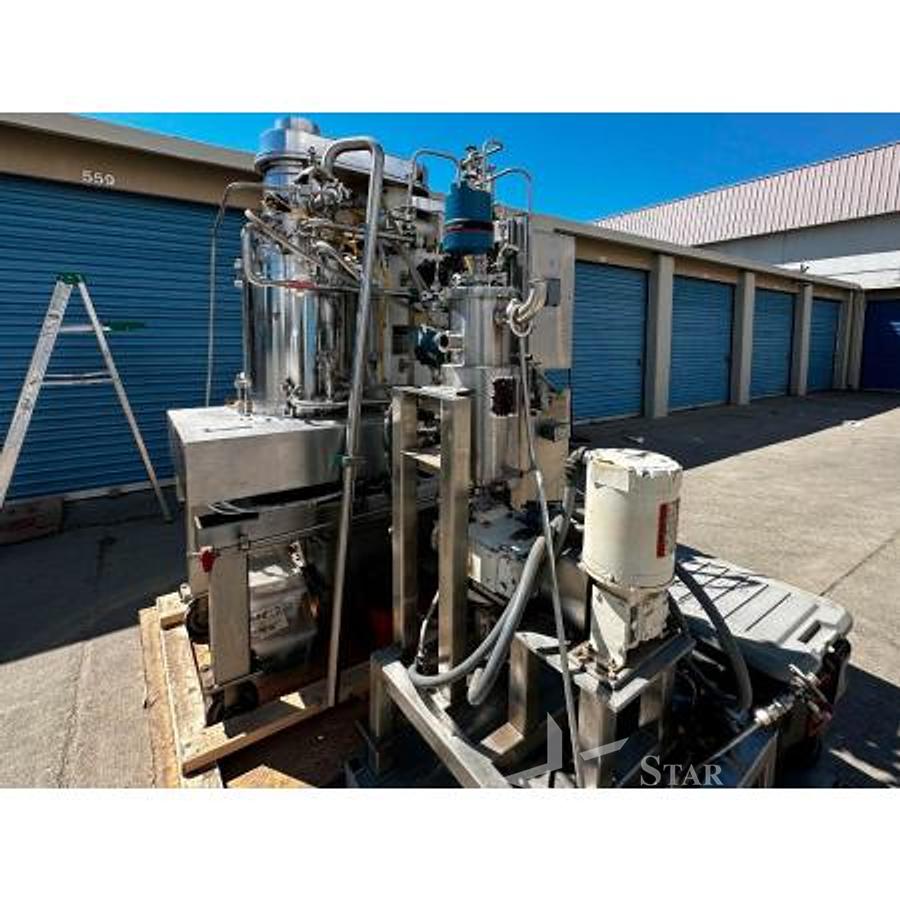

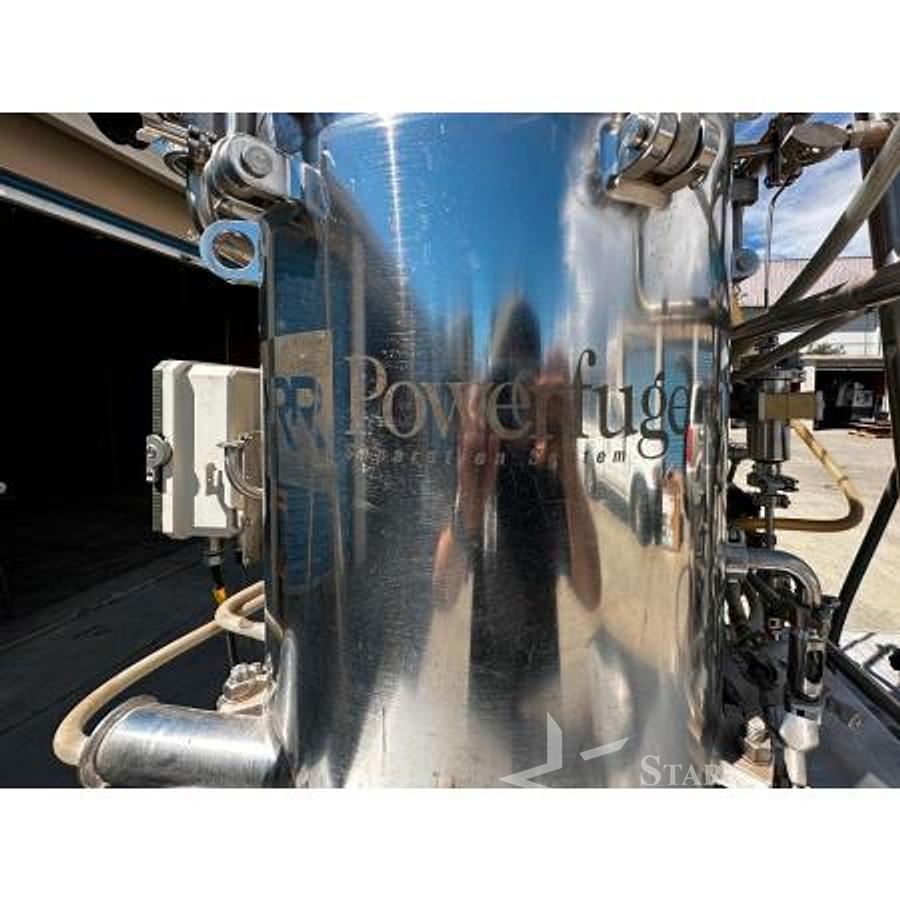

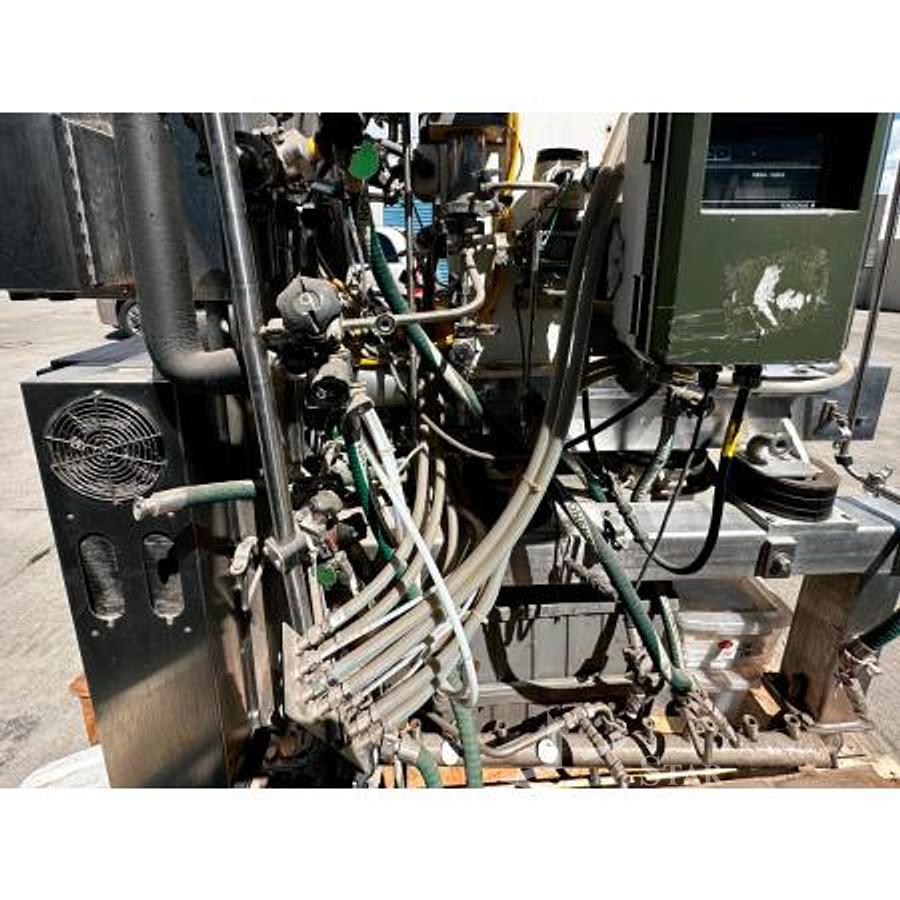

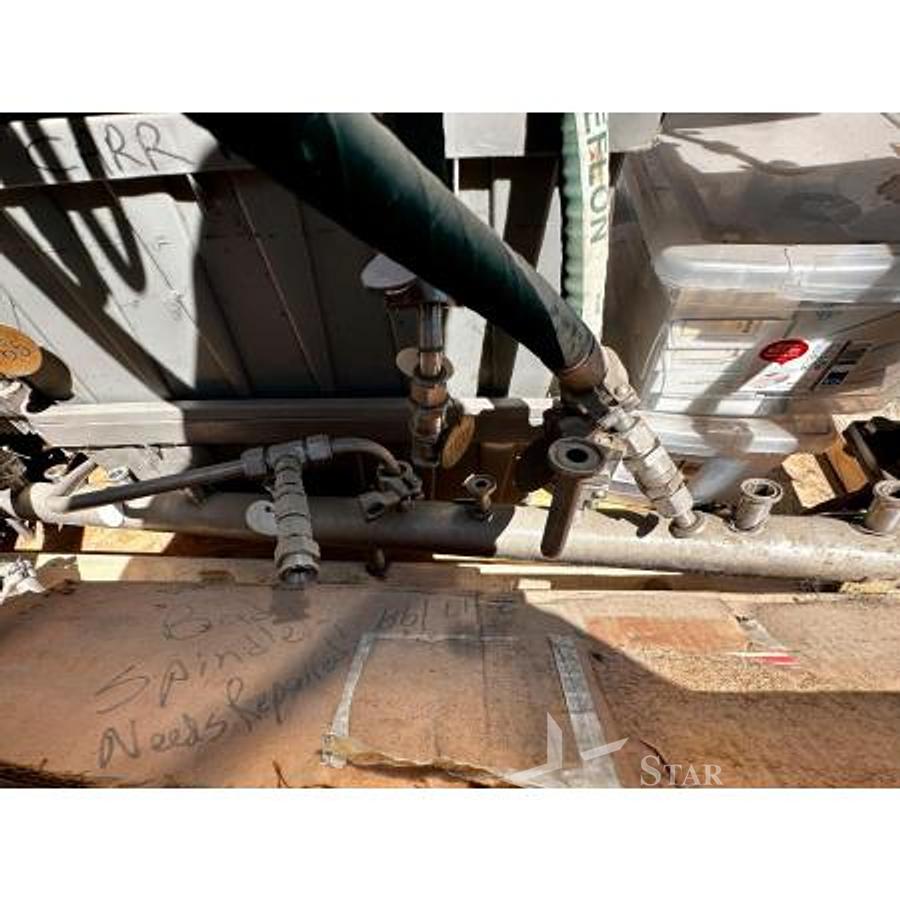

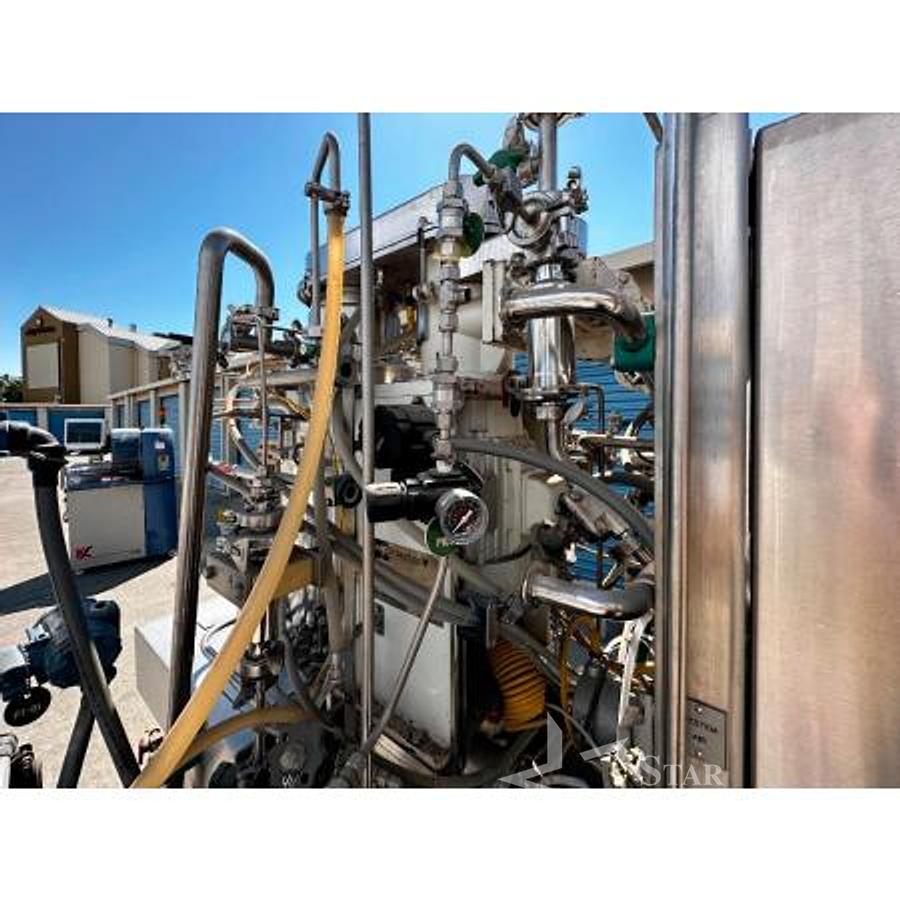

CARR powerfuge P12 Separation system4

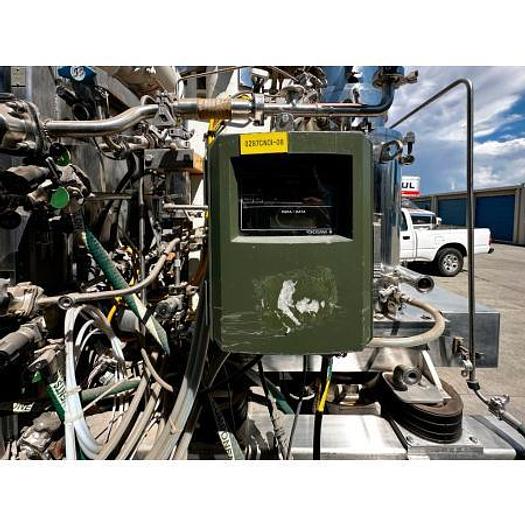

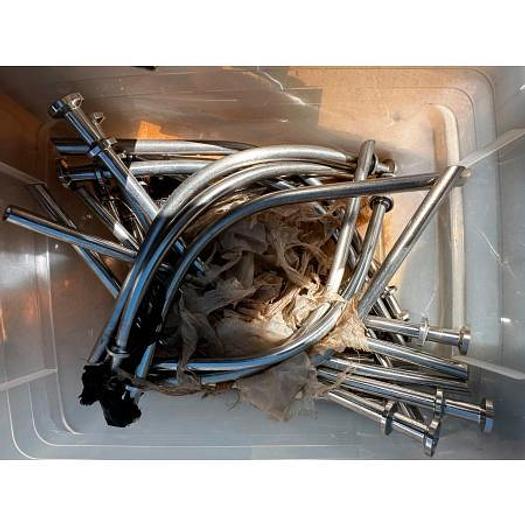

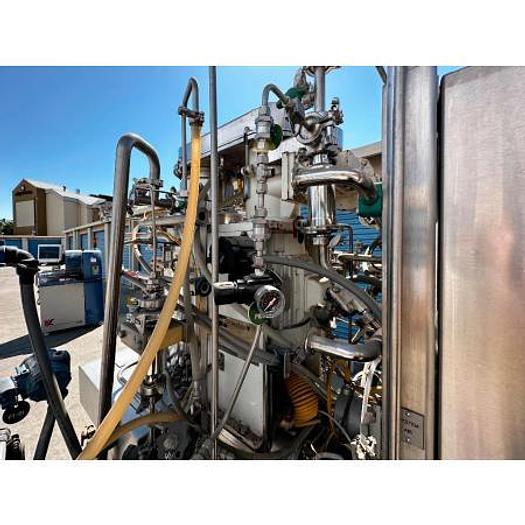

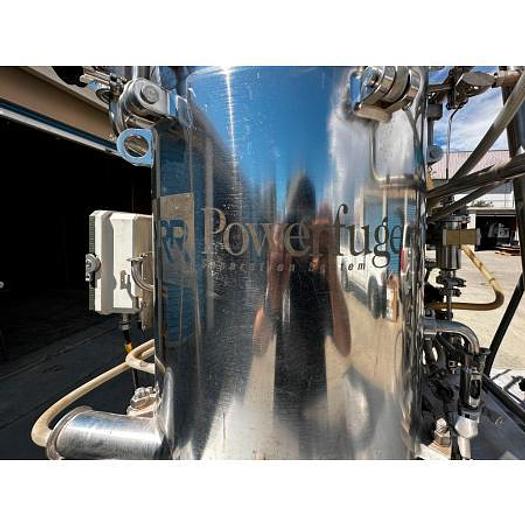

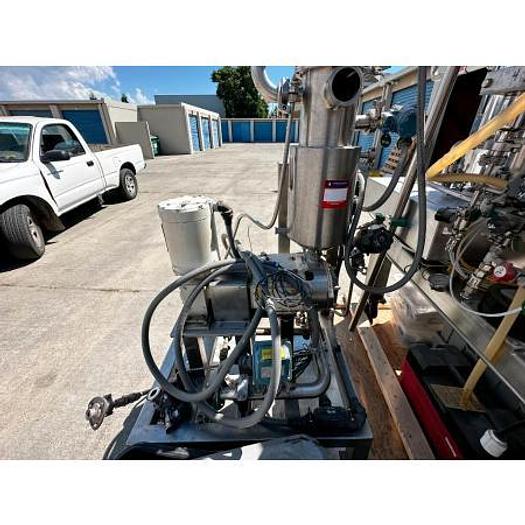

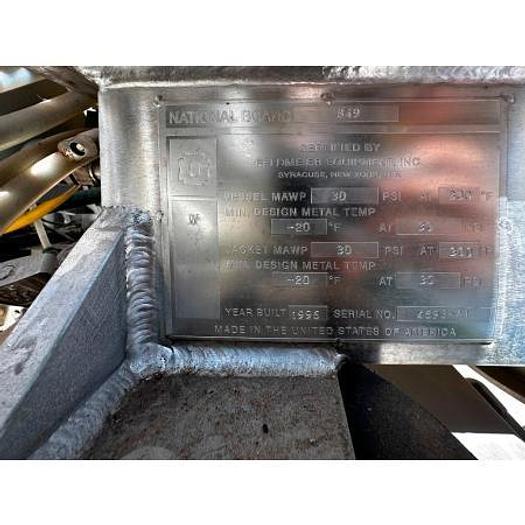

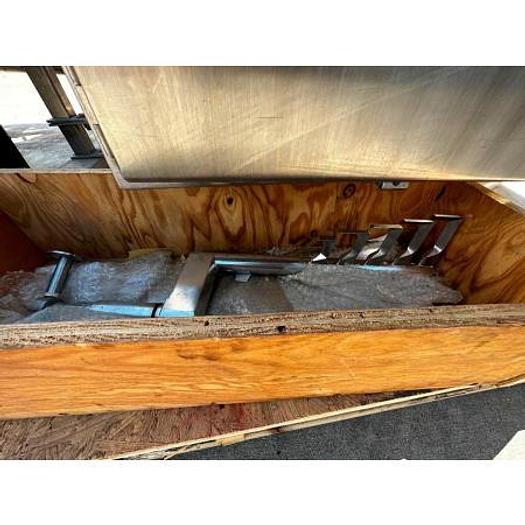

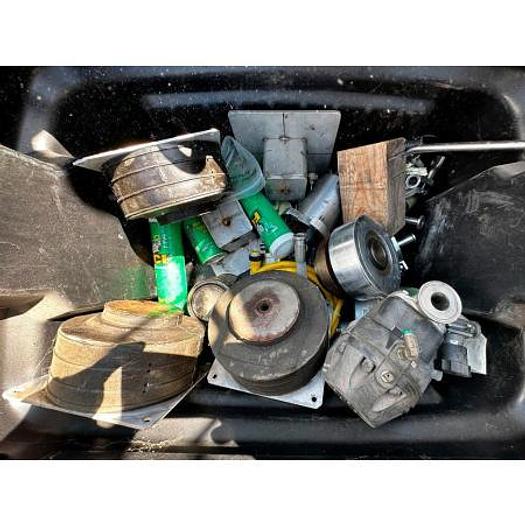

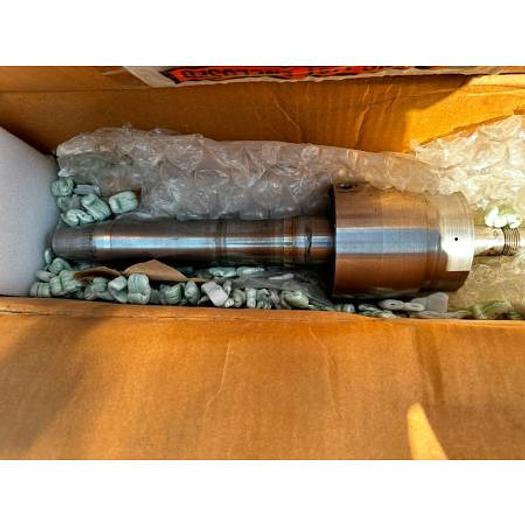

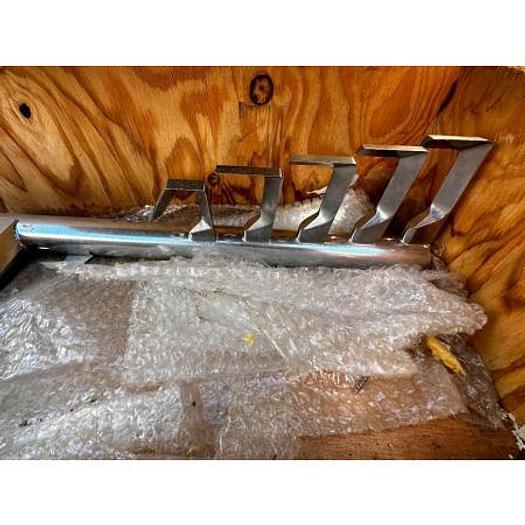

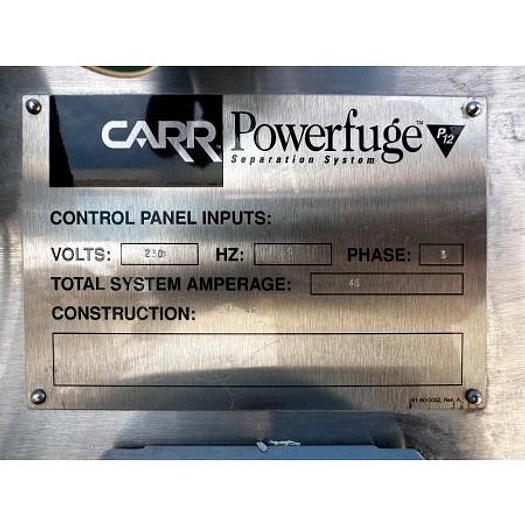

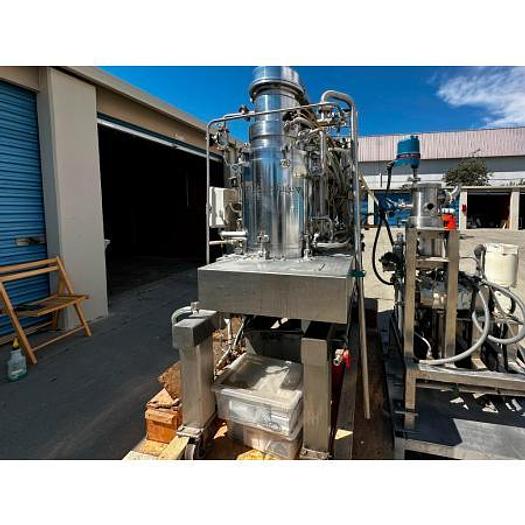

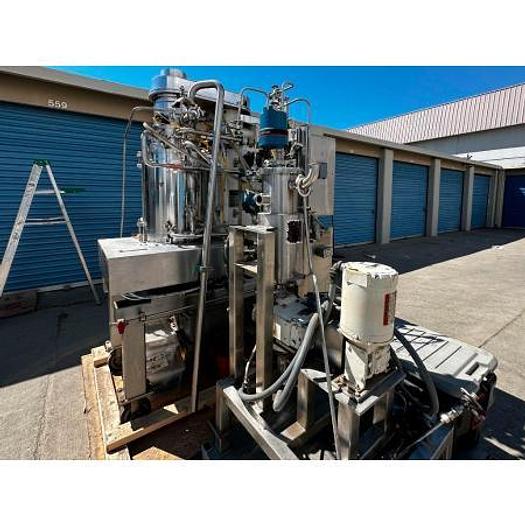

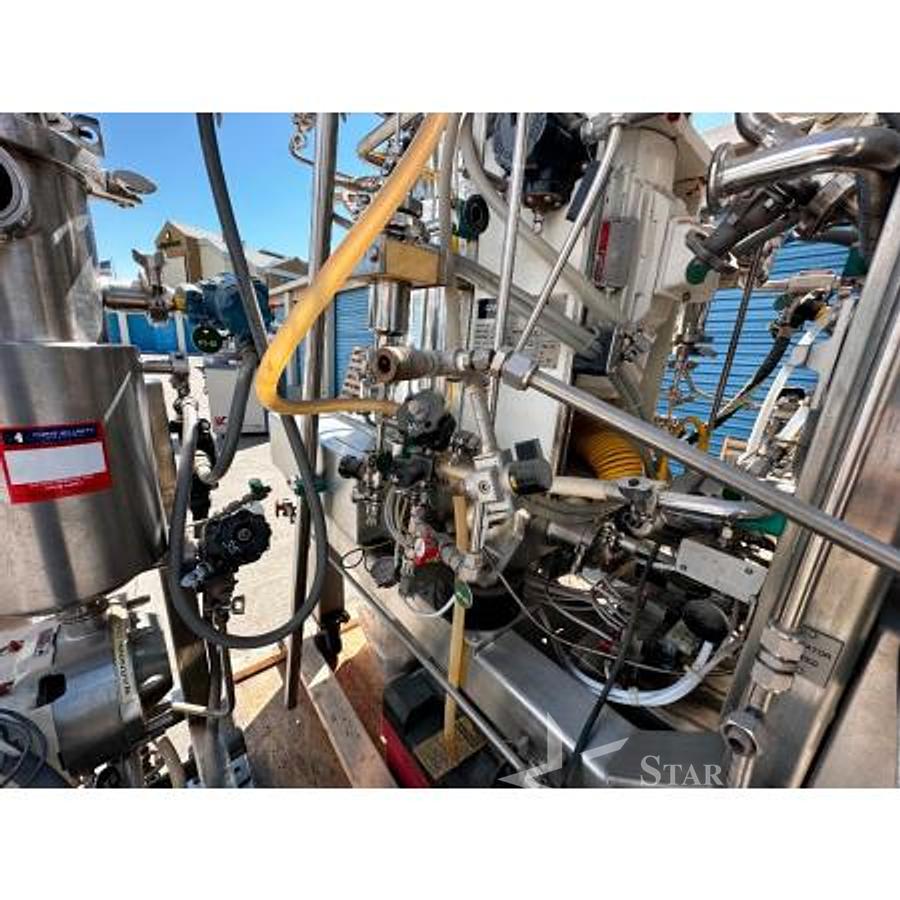

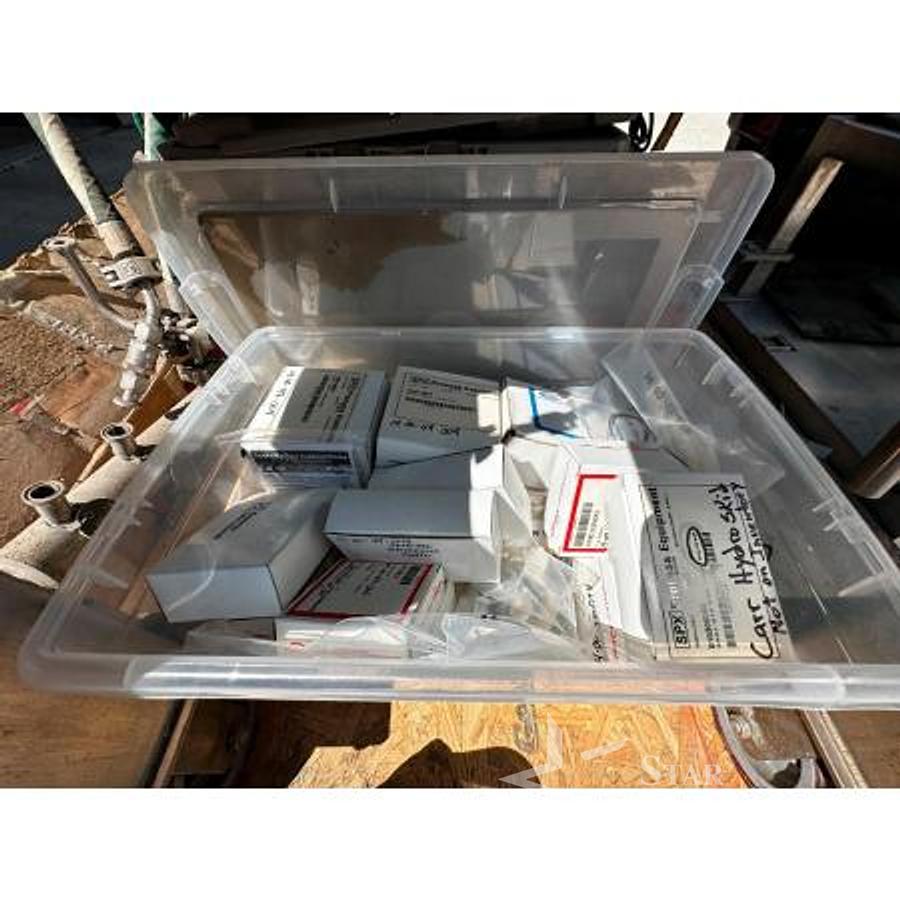

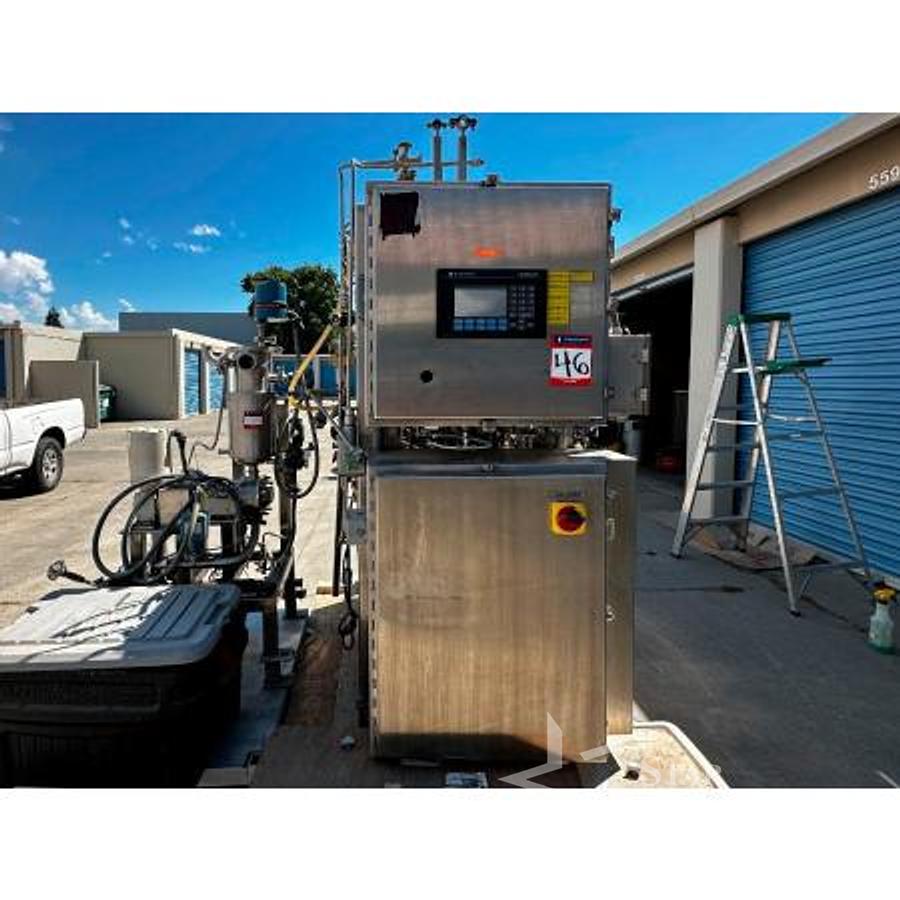

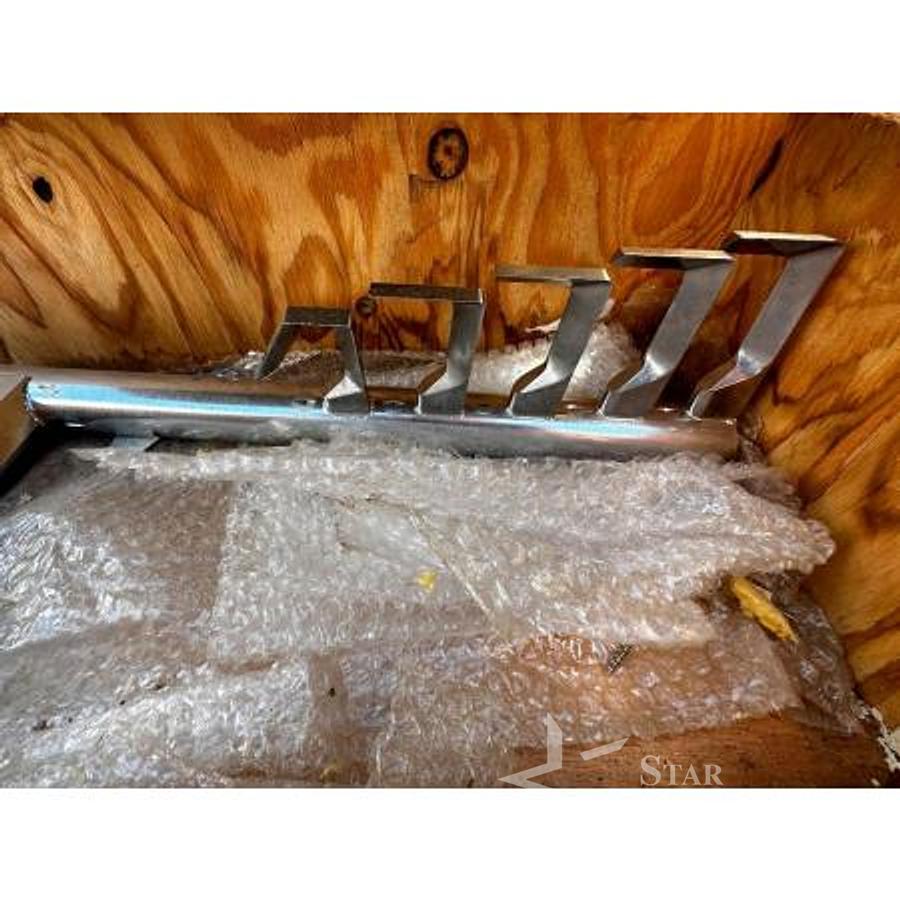

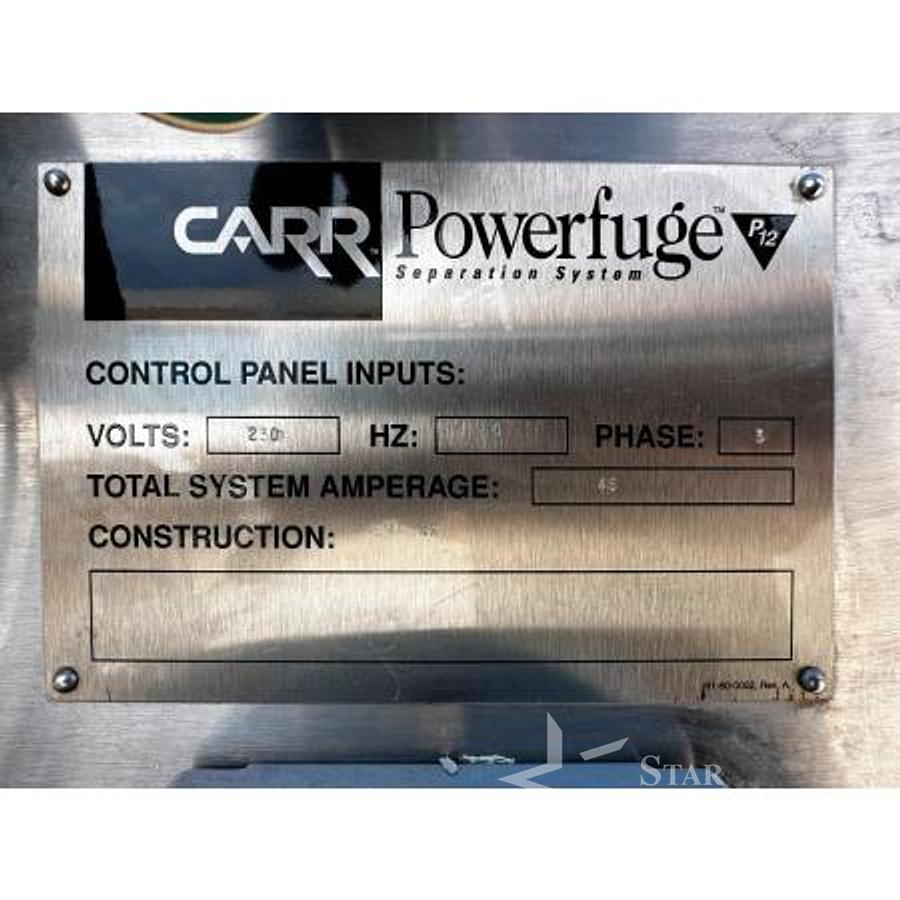

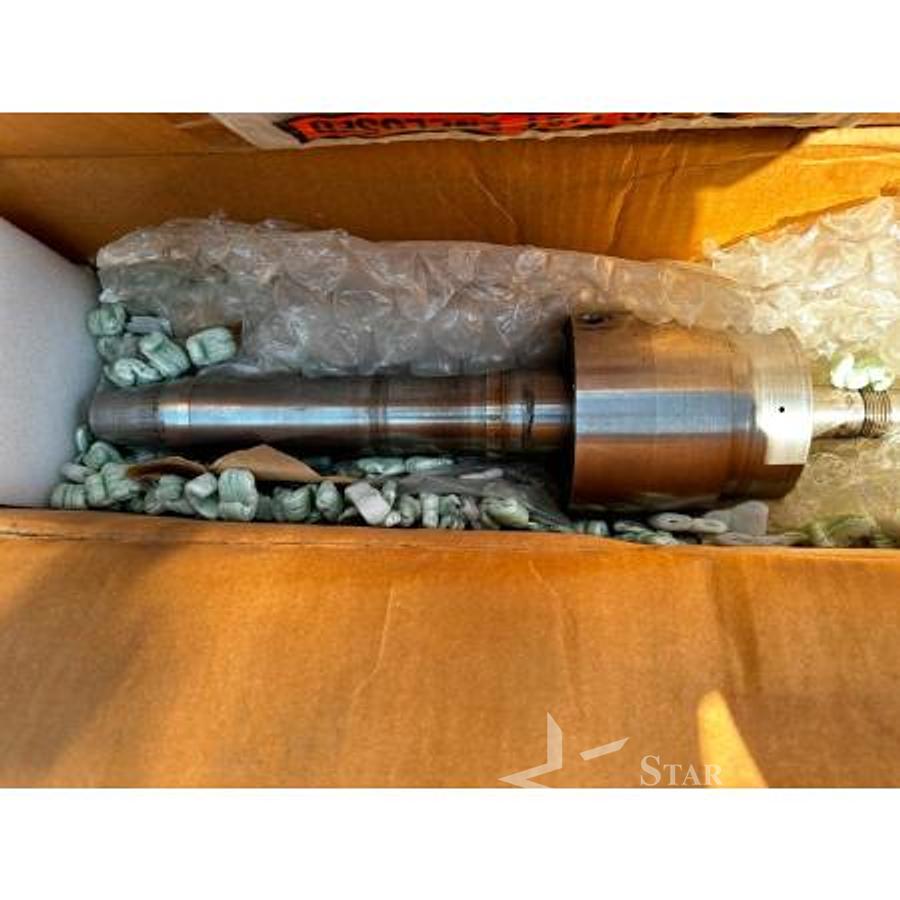

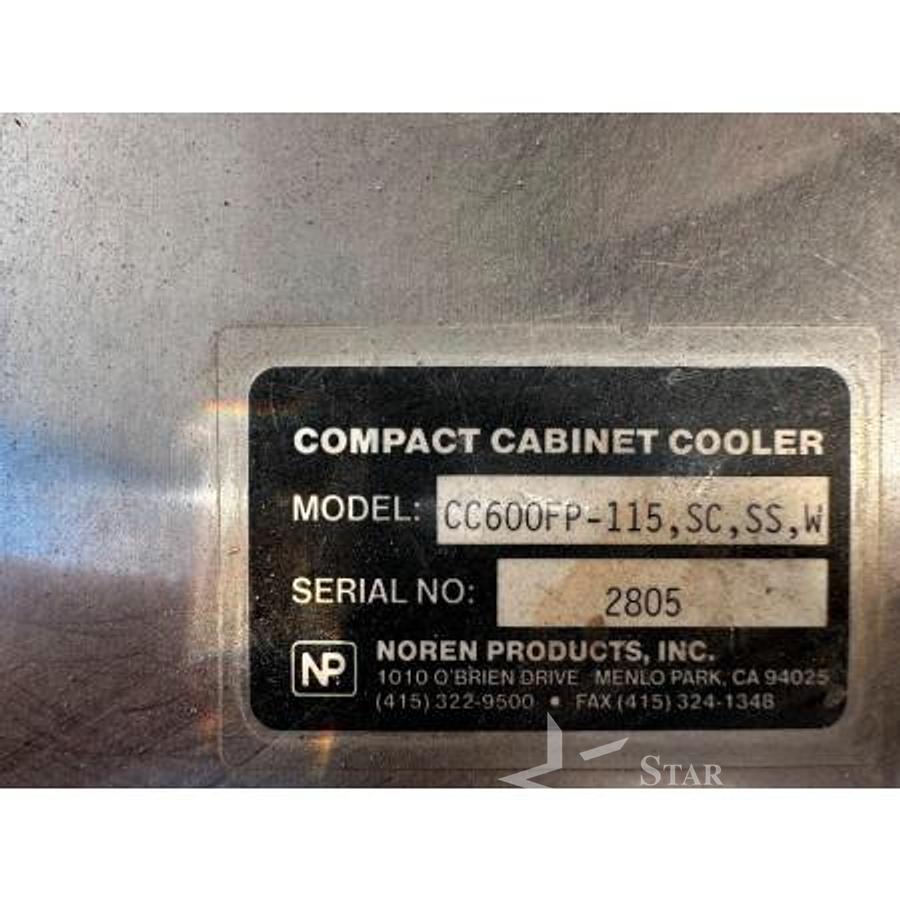

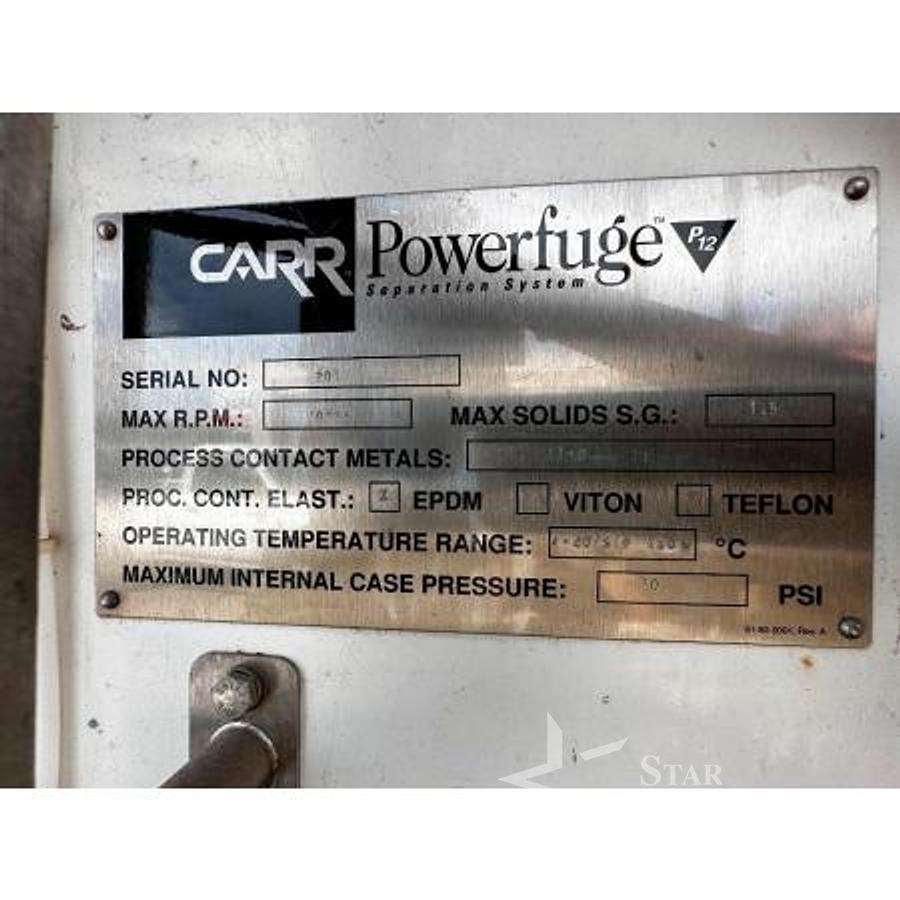

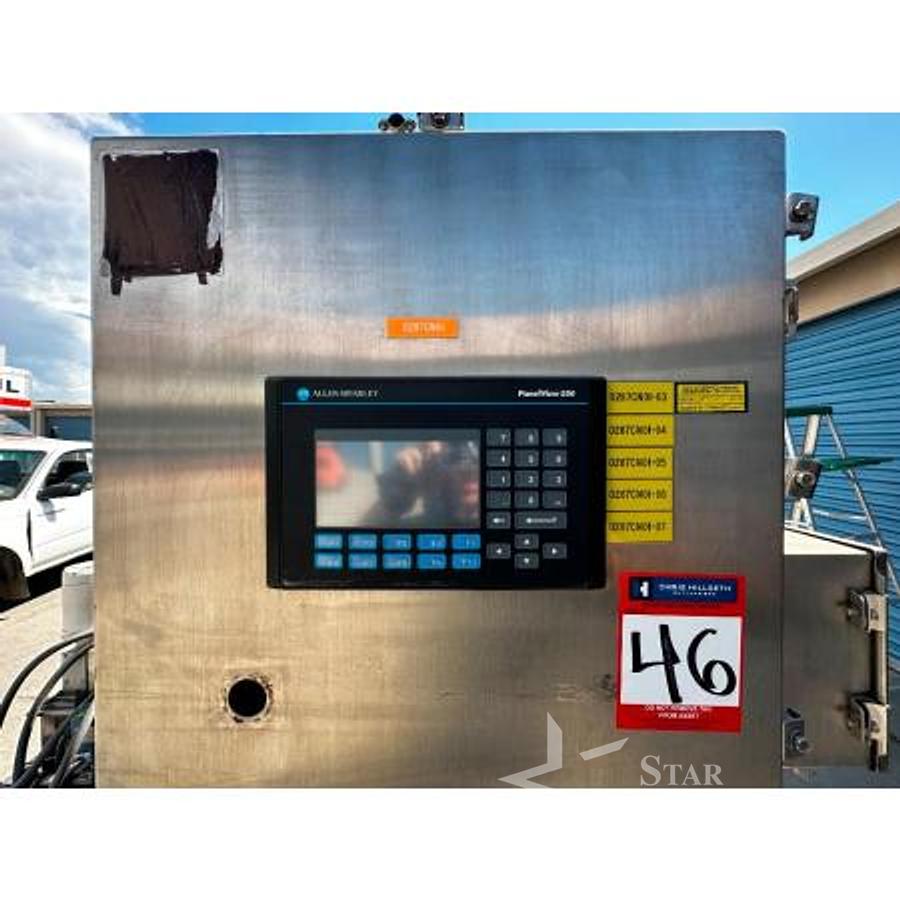

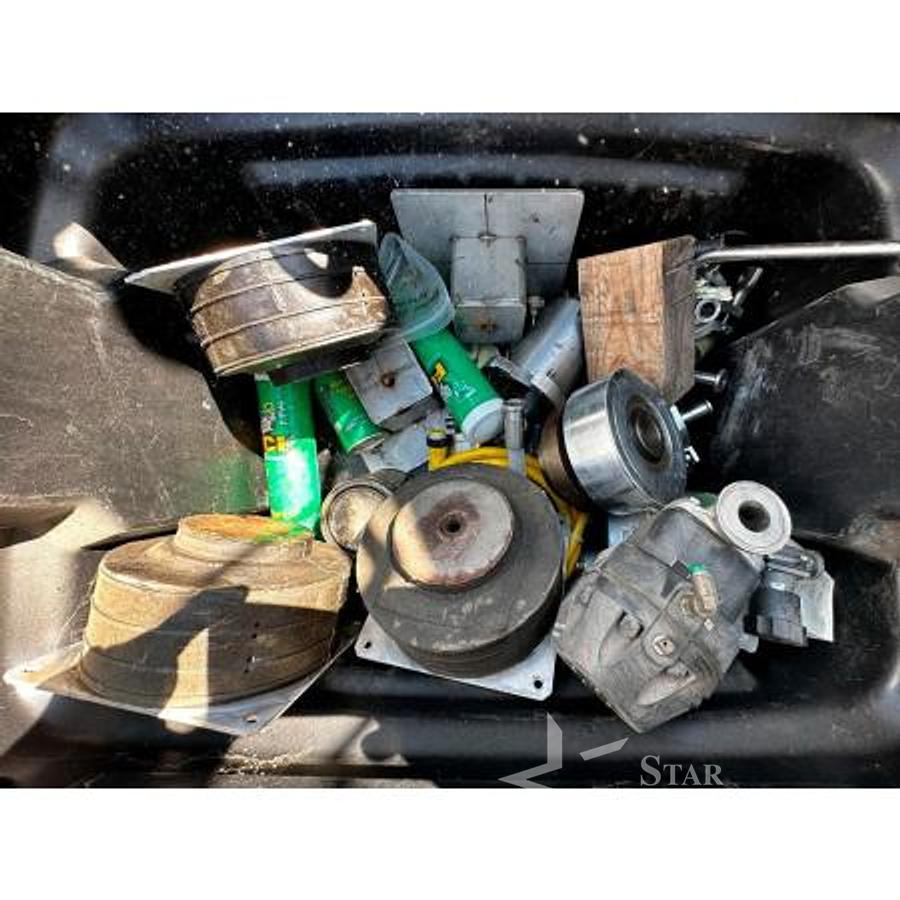

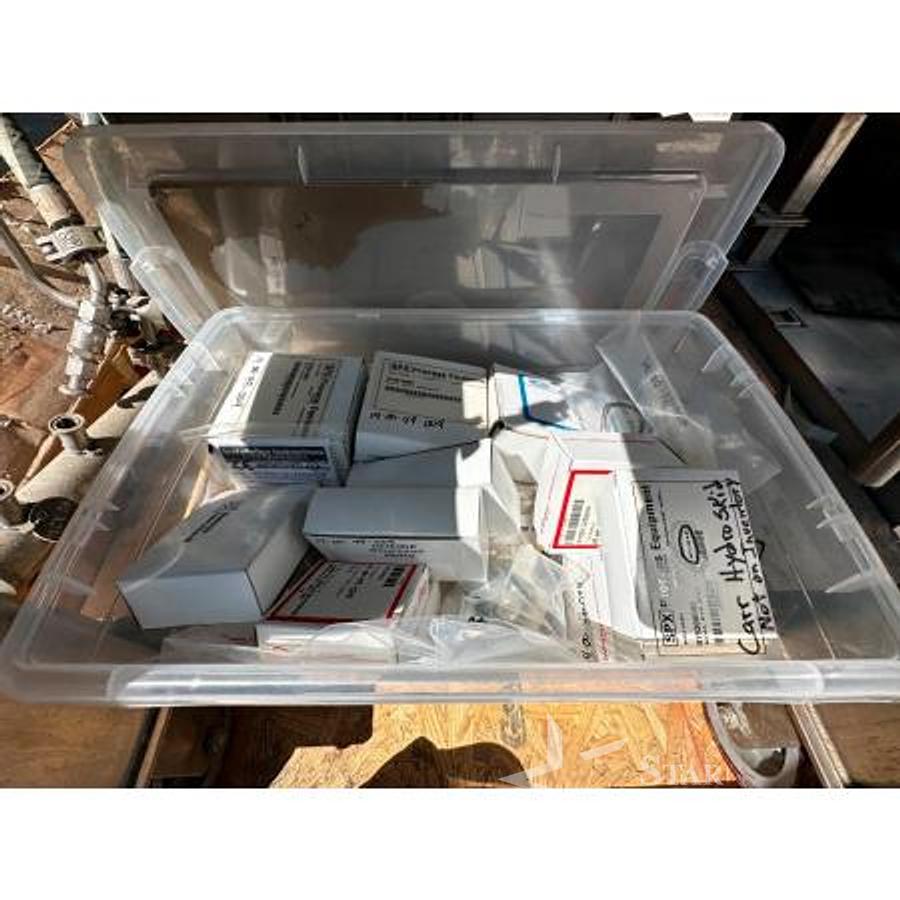

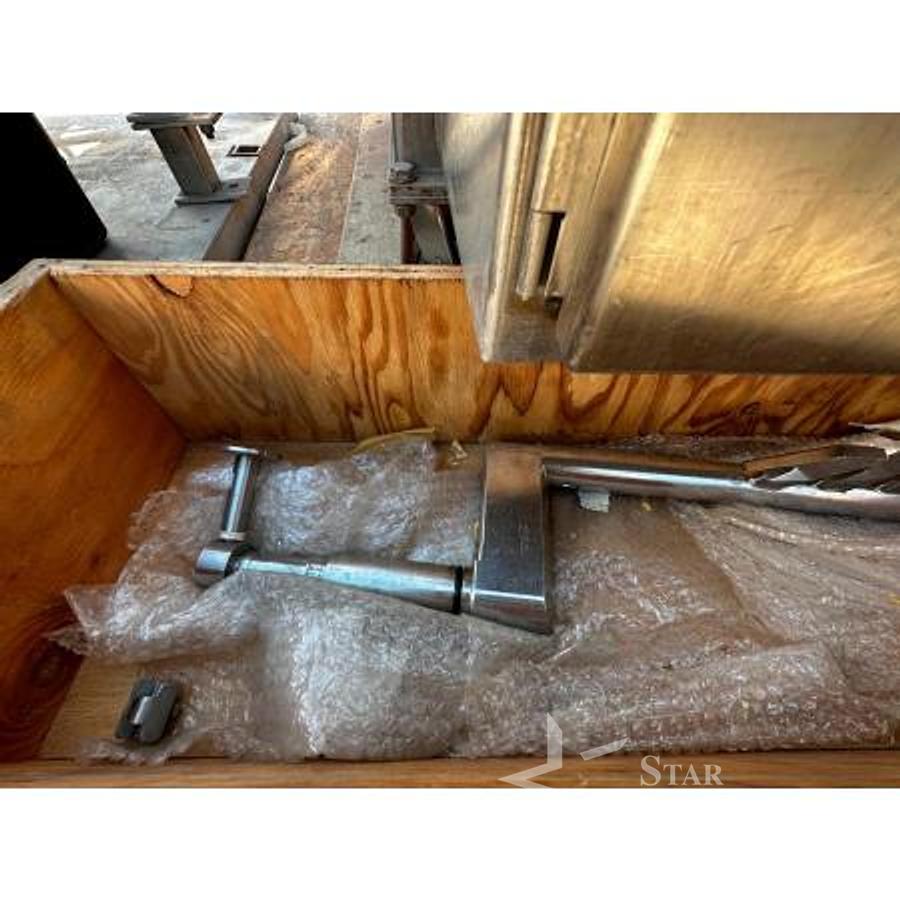

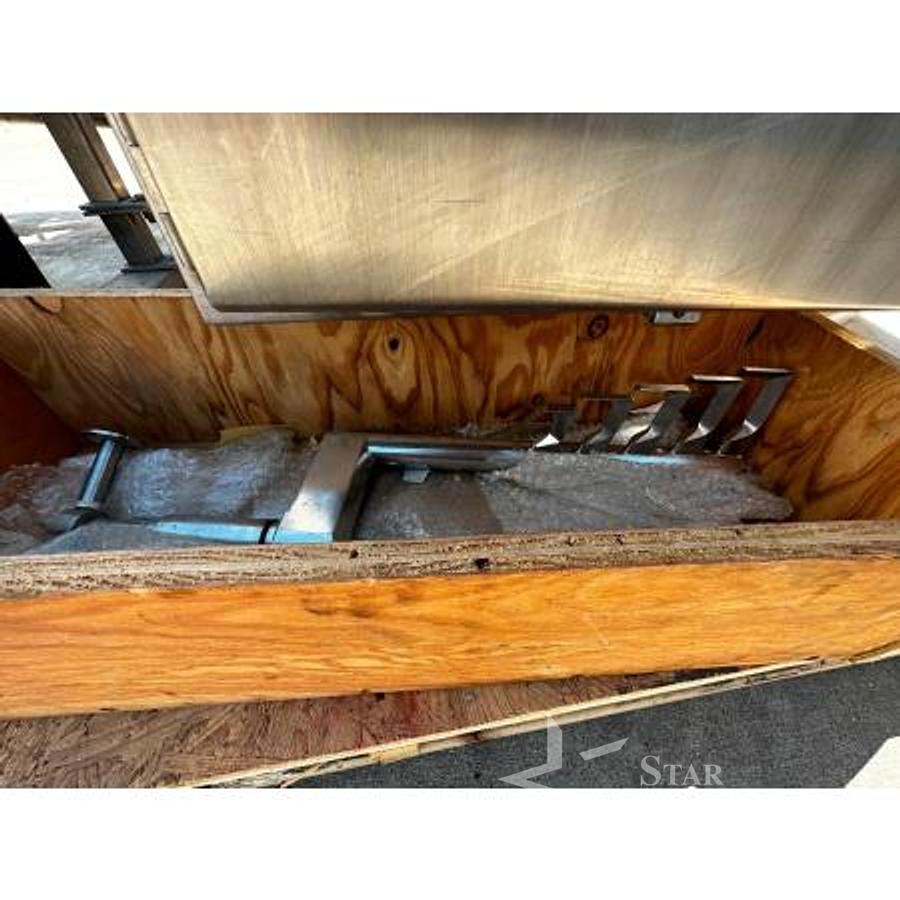

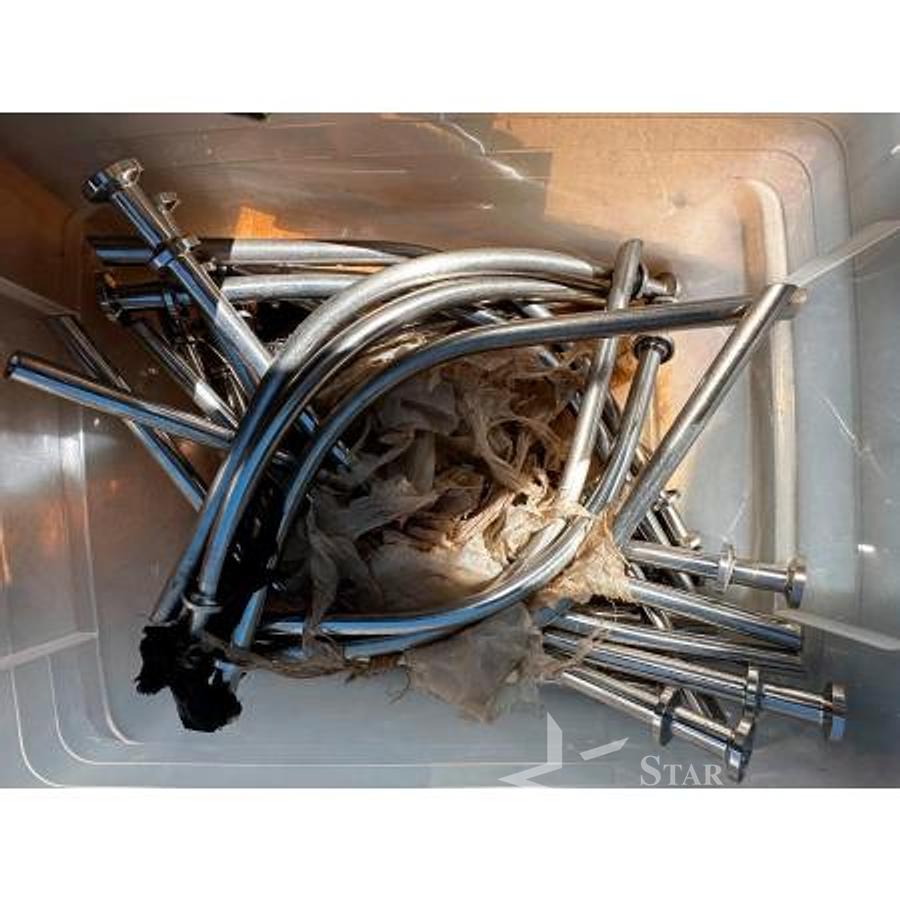

1- CARR Powerfuge P12 Separation SystemSerial Number: 205Max RPM: 10874Max Solids: SG 1.5. Process contacts metals 316 L Maximum temperature range for operation 4–4 0/SIP150 Celsius Maximum internal case pressure 30 psi Power control, panelVolts: 230Hertz: 60Phase: 3Amps: 45Machine comes with multiple boxes of spare parts Toolbox National board certification plate 846 Manufacture Date: 1996Serial Number: 4693– A1 Compact Cooler Cabinet Model Number: CC600FP – 115, SC, SSW Serial Number: 2805Description: The Powerfuge P12 System is a batch liquid/solid separation system for bacteria, yeast, proteins and sub-micron particles. It is designed to provide continuous-flow two-phase separation of solids and liquids and meets cGMP and CE requirements as well as chemical and pharmaceutical industry protocols. Bowl capacity: 8L Flow rates up to 500 L/hr for batches up to 500 L Footprint ~ 78.7 cm wide x 172.7 cm deep x 203.2 cm high (31” x 68” x 80”) Total weight ~ 1924 kg (4,240 lbs) Fully scalable to smaller automated Pilot and P6 models Fully scalable to larger automated P18 model Drier solids and clear liquids
