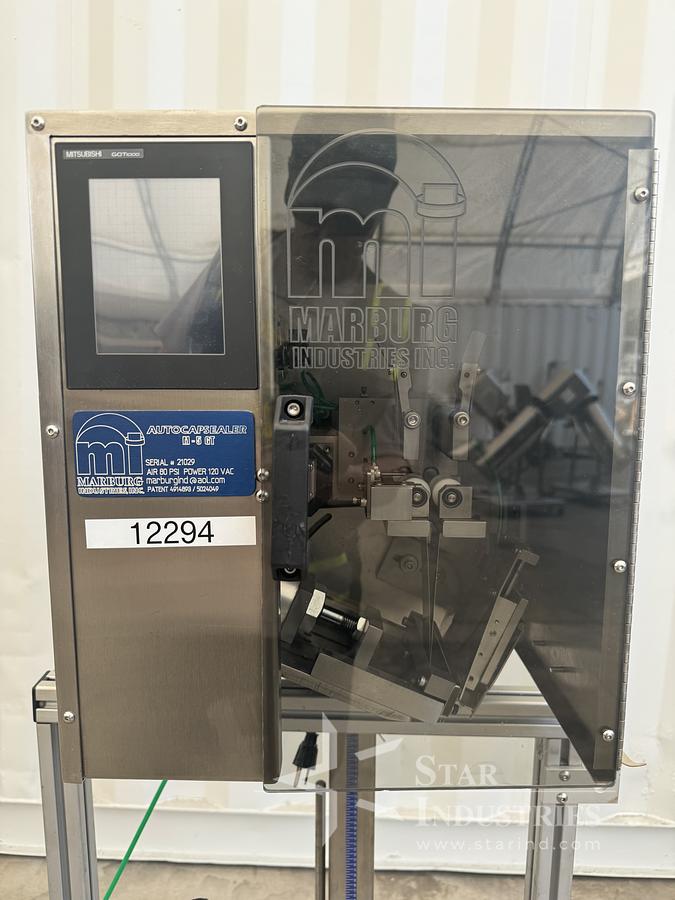

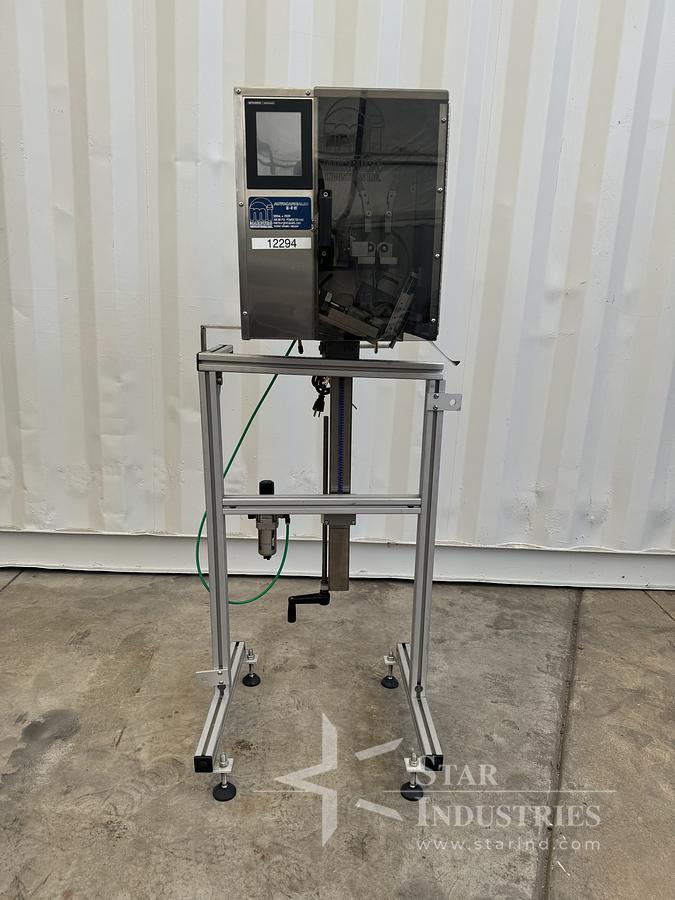

Marburg Model M-5GT Shrink Bander

Used Marburg Model M-5GT Shrink Bander, NO DRIVES

Specifications:

• Electrical 120VAC

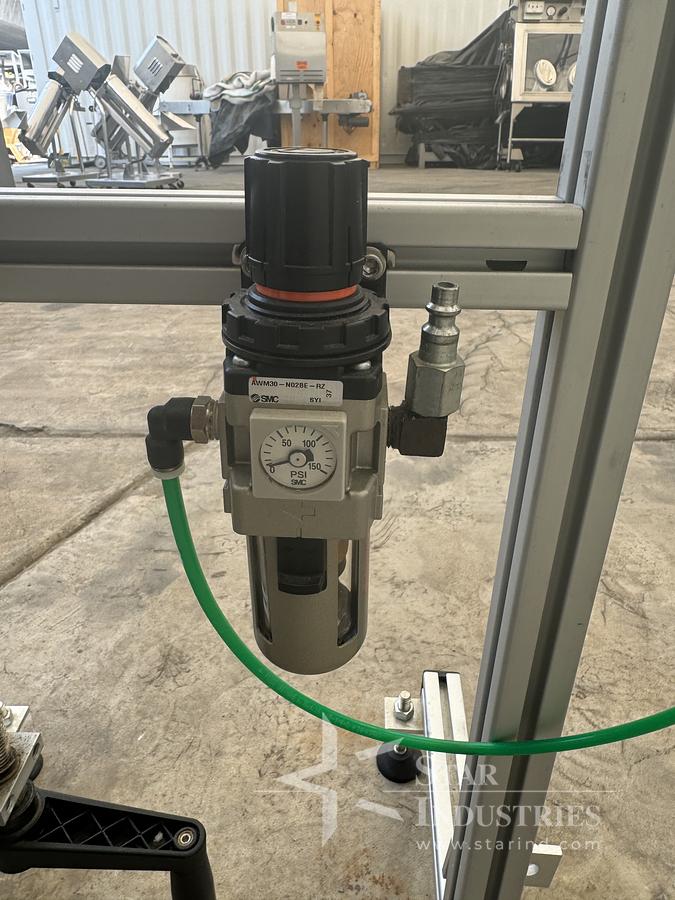

• Air Supply Min. 80psig
• Material sizes 25mm-90mm lay flat (M-5)/ 25mm-128mm lay flat (M-6)
• Material Gauge 50-70 Micron (thickness depends on application)
• Roll Lengths Material disk will support roll lengths of 300-500 meters. Outside diameter of material should not exceed 17 inches. *Material thickness will affect outside diameter, A 500-meter roll of 70 micron materialss will have a larger OD than a 500-meter roll of 50 micron material
• Materials Core sizes Material should be wound on a core of 5 inches ID
• Band Lengths 25mm-75mm lengths (M-5)/ 22mm-90mm lengths (M-6)
• Bottle heights Machines have a minimum of 7 inches adjustment of height from low too high. The staring point will vary on the head support, which is determined by application
• Speeds The M-5 is designed to run speeds of up to 100BPM*speeds may be affected by band lengths and application
• Direction of travel Standard direction of travel id left to right
• Conveyor Speeds 40-60ft per minute
• Changeover time, 5 mins
