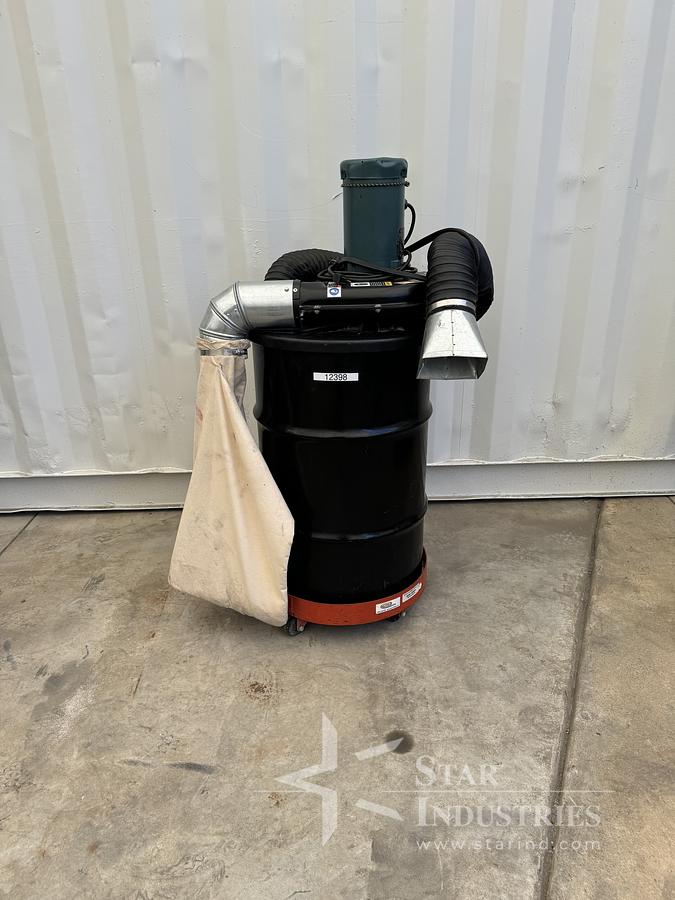

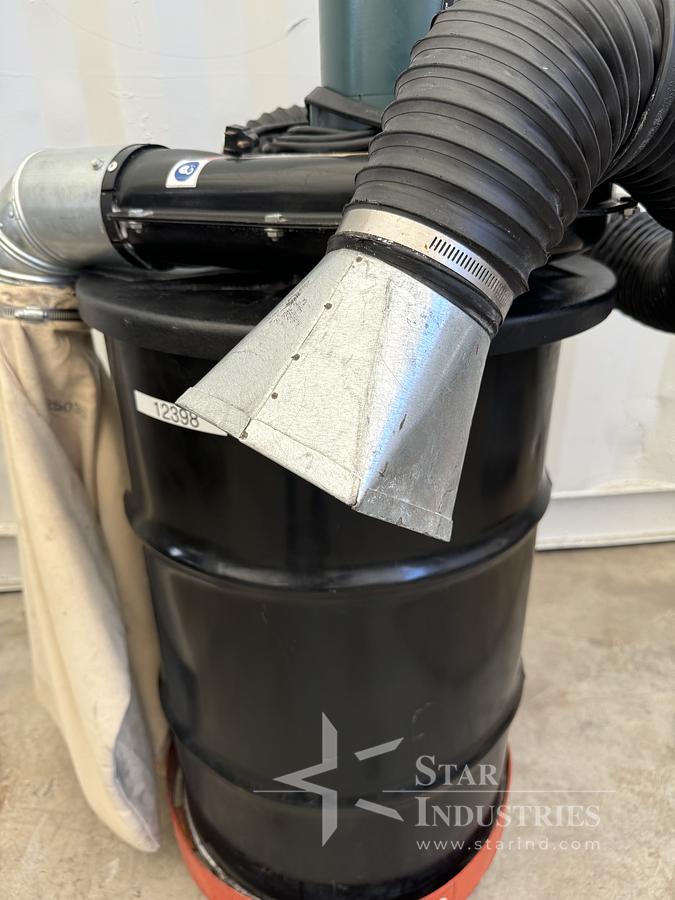

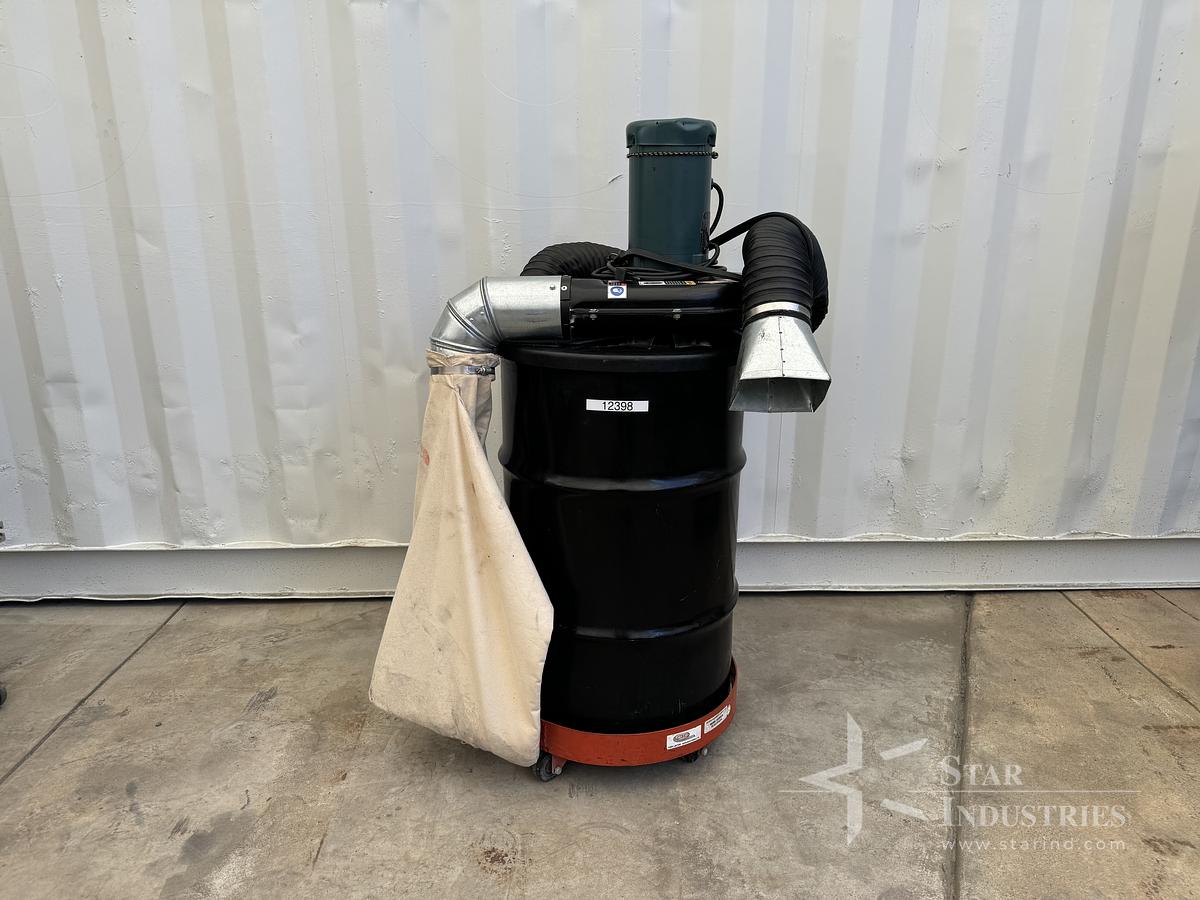

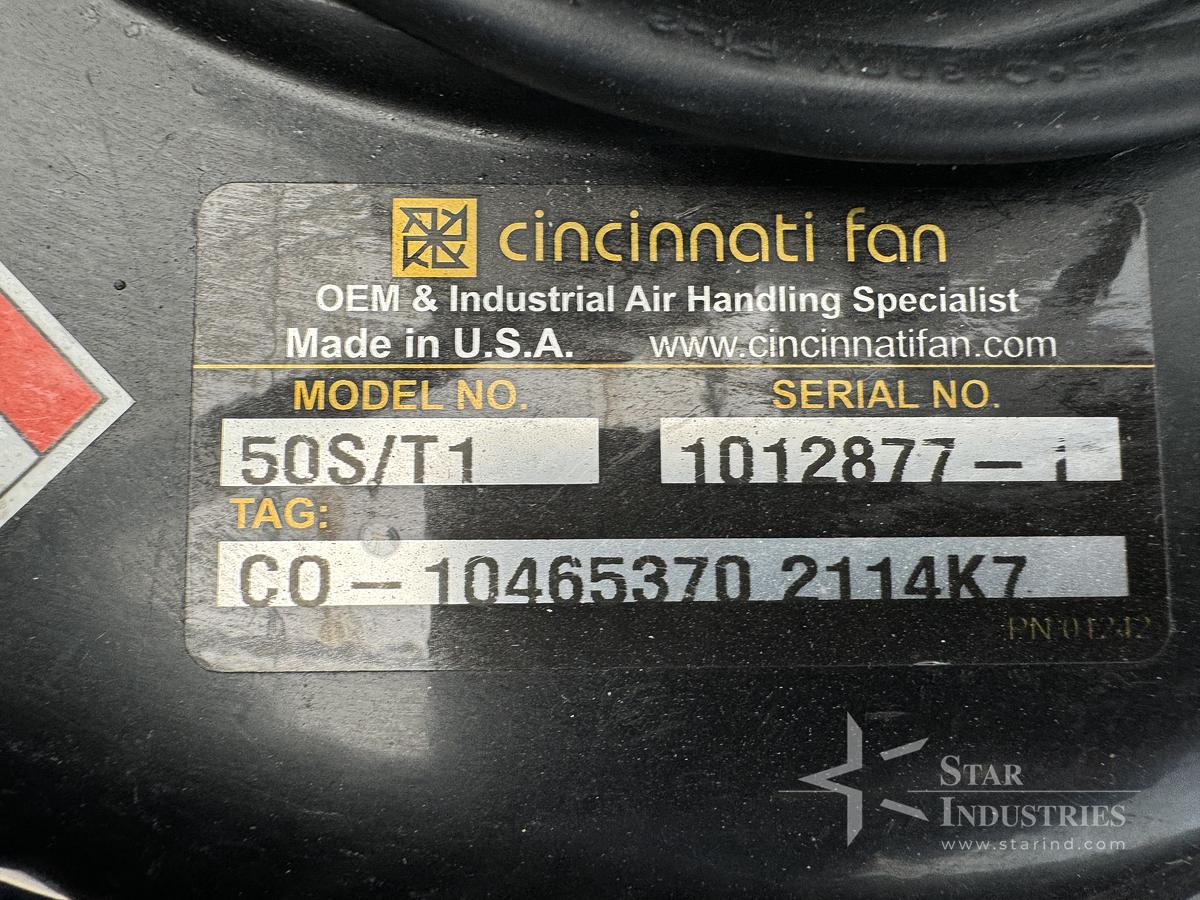

Cincinnati Fan Dust Master Collector

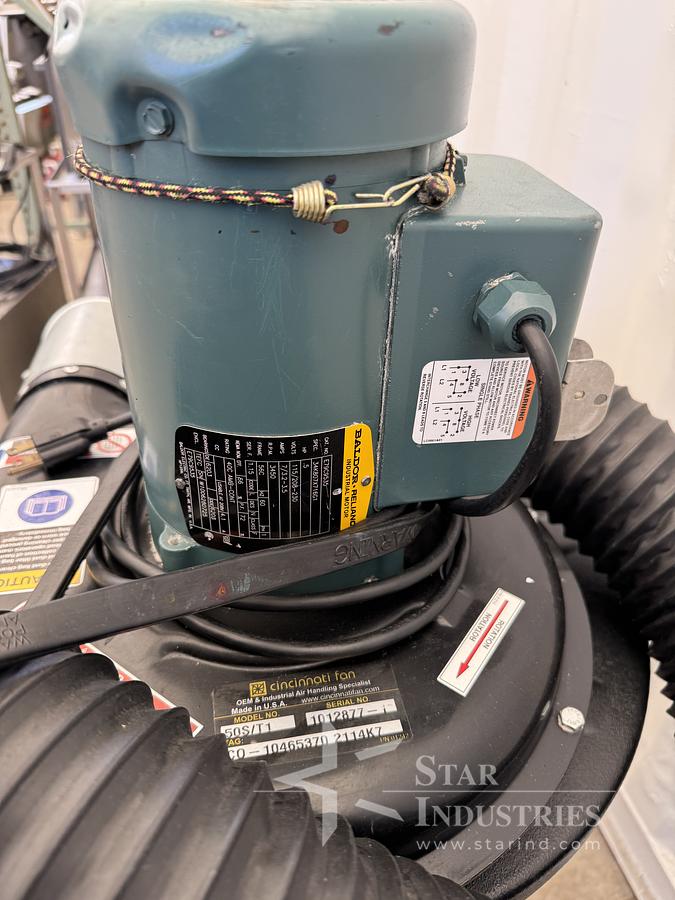

Used Dust Collector,

Performance Range

Capacities for Portable Models:

• Capacities up to 1300 CFM
• Static pressures up to 10″ SPWG
• Air stream temperature to 104° F (40° C)

Features

• AMCA Type B construction on all models with explosion proof motors.
• Spark resistant, self-cleaning, cast aluminum, and radial wheels are standard.
• Totally enclosed motors are standard.
• Motors are continuous duty, full horsepower rated. NOT duty rated.
• Heavy-duty 14 gauge steel blower housing is standard on all models.

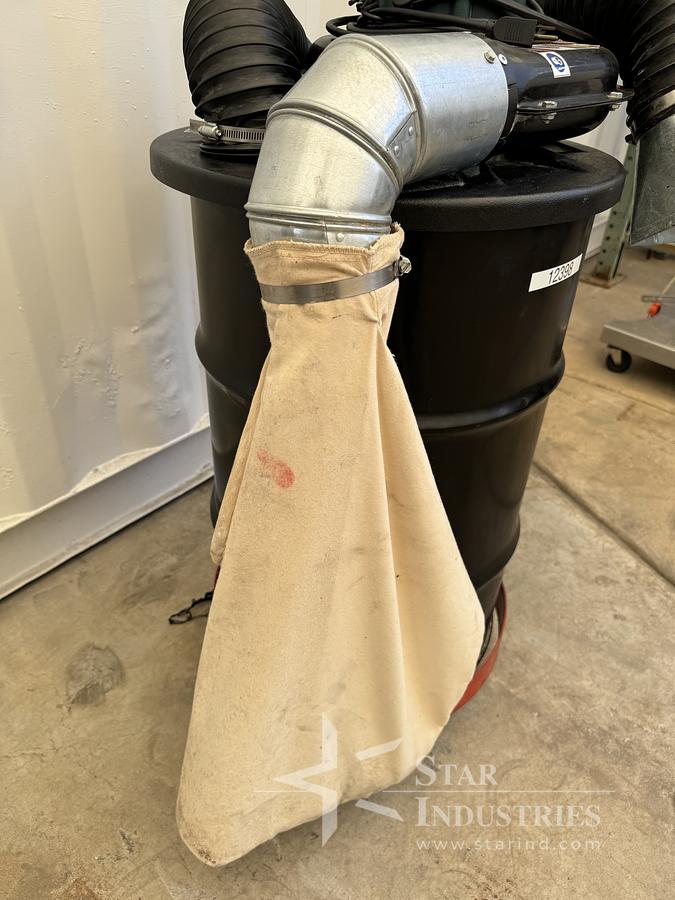

• 1/3 – 3/4 horsepower models standard with a 10 micron dust bag. 1-3 horsepower models standard with a 5 micron dust bag. 1 micron bags are available on 1 to 3 horsepower models. All dust bags are 99% efficient at their specified micron filtration levels.

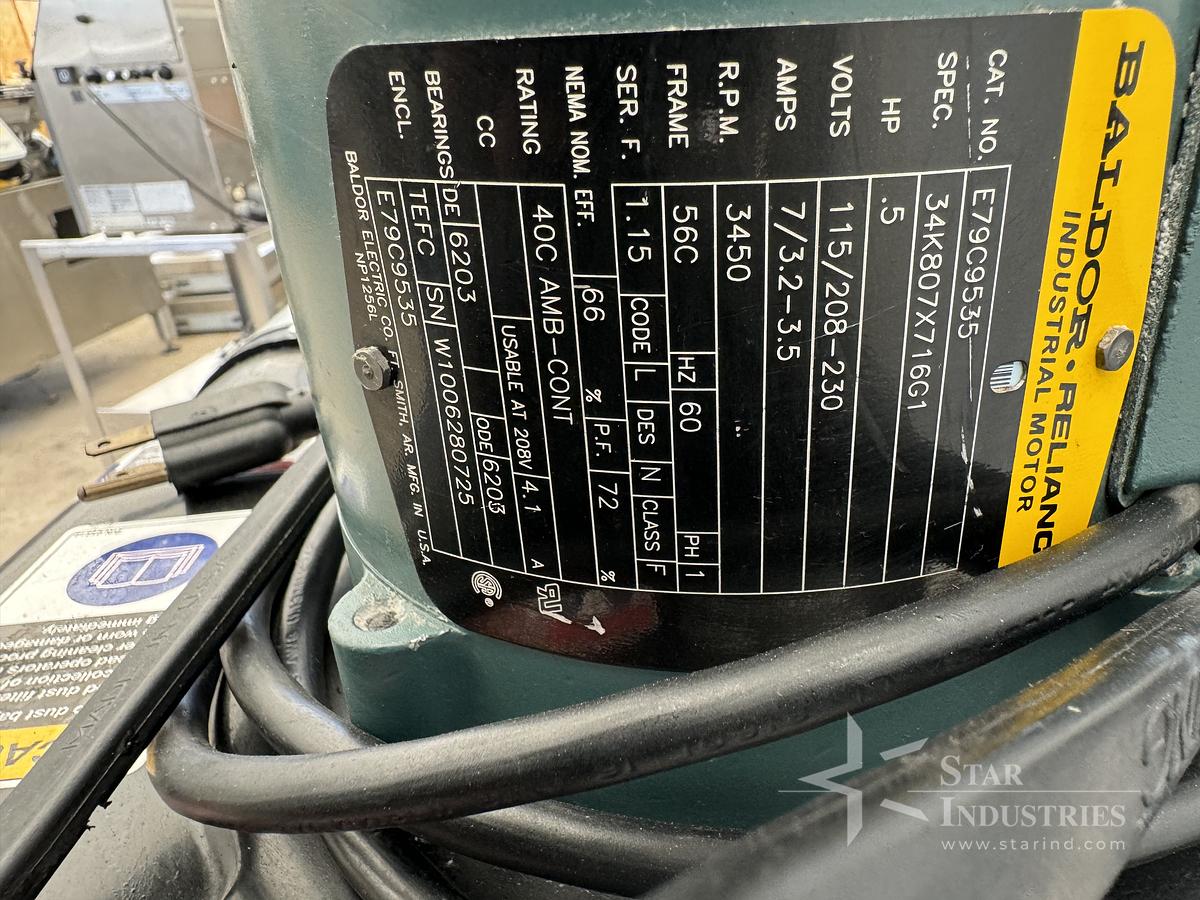

• All models available with 3 Phase, 230/460 Volt, 60 Cycle motors. 1/3 HP up to 2 HP models are also available with 1 Phase, 115/230 Volt, and 60 Cycle motors.
• EXP, 575 Volt, and 50 Cycle motors are also available on most models.
• Single phase, totally enclosed motors (up to 1 HP) come with an 8 foot cord, 3 prong grounded plug, and a switch pre-wired for 115 Volt, 60 Cycle.
• Drum lids on 1/3 to 3/4 HP models fit over standard 30 gallon steel garbage cans or 35 gallon steel or fire-resistant, fiber drums having a maximum diameter of 20-1/2”.
• Drum lids on 1 to 3 HP models fit over standard 55 gallon steel drums or foil lined, fiber drums having a maximum diameter of 24”. Fiber drums must be able to support the unit weight.
• Drums are not included and plastic drums should never be used for any models.
